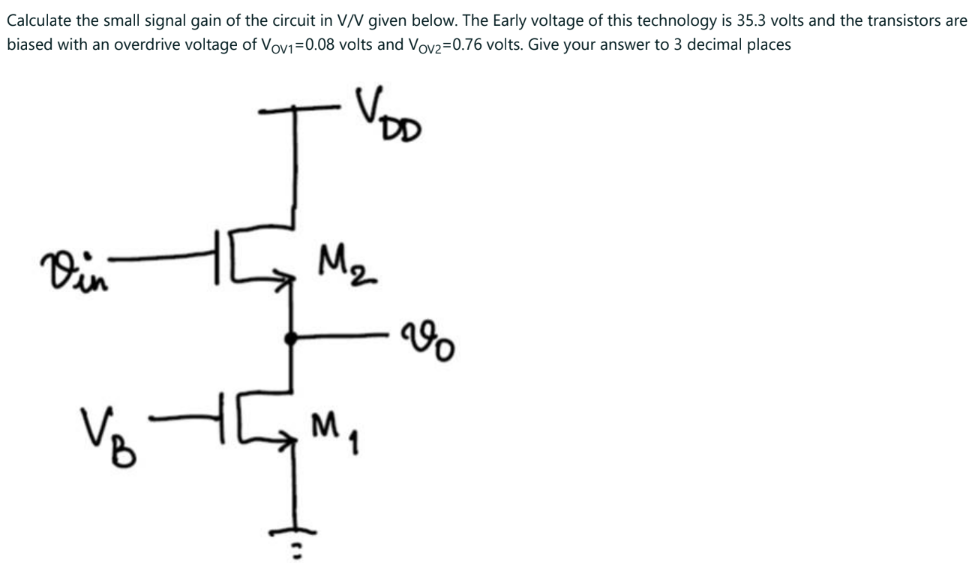

Calculate the small signal gain of the circuit in V/V given below. The Early voltage of this technology is 35.3 volts and the transistors are biased with an overdrive voltage of VOV1 = 0.08 volts and VOV2 = 0.76 volts. Give your answer to 3 decimal places
You'll get a detailed, step-by-step and expert verified solution.
Correct & Verified Answers
No AI-Generated Answers
Video Solution for Difficult Questions

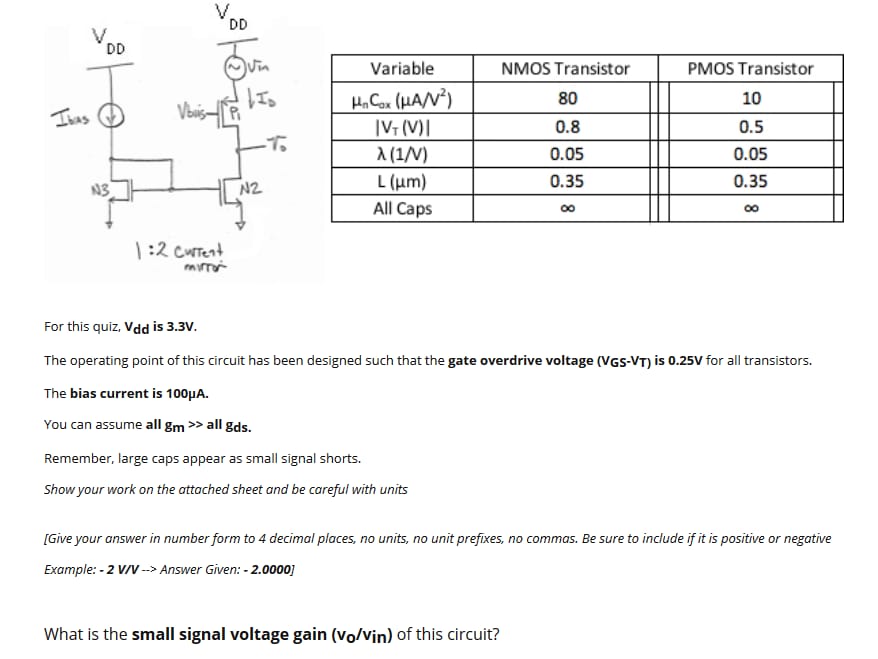

Work With Experts to Reach at Correct Answers![For this quiz, Vdd is 3.3 V. The operating point of this circuit has been designed such that the gate overdrive voltage (VGS−VT) is 0.25 V for all transistors. The bias current is 100 μA. You can assume all gm≫ all gds. Remember, large caps appear as small signal shorts. Show your work on the attached sheet and be careful with units [Give your answer in number form to 4 decimal places, no units, no unit prefixes, no commas. Be sure to include if it is positive or negative Example: - 2 V/V -- > Answer Given: −2.0000] What is the small signal voltage gain (vo/vin) of this circuit?](https://www.doubtrix.com/uploads/editor/4297678167IJcTHgttlm.jpeg)

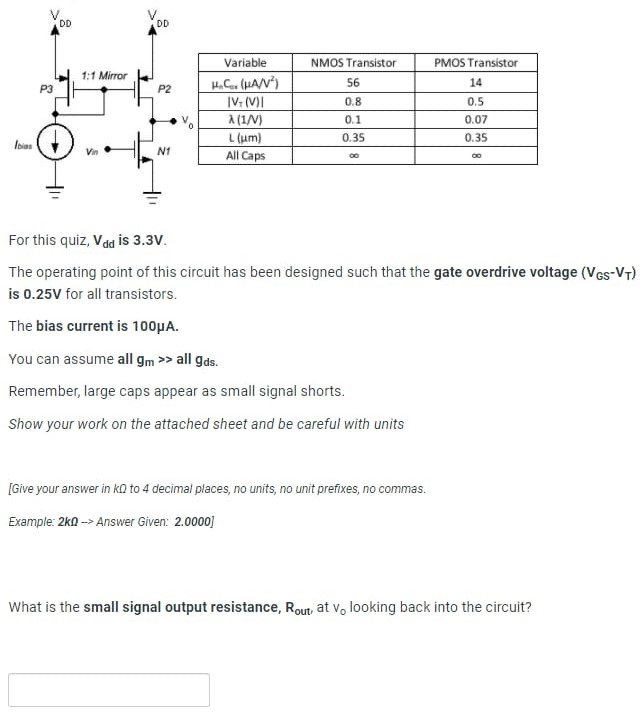

![For this quiz, Vdd is 3.3 V. The operating point of this circuit has been designed such that the gate overdrive voltage (VGS−VT) is 0.25 V for all transistors. The bias current is 100 μA. You can assume all gm≫ all gds. Remember, large caps appear as small signal shorts. Show your work on the attached sheet and be careful with units [Give your answer in kΩ to 4 decimal places, no units, no unit prefixes, no commas. Example: 2 kΩ → Answer Given: 2.0000 ] What is the small signal output resistance, Rout , at v0 looking back into the circuit?](https://www.doubtrix.com/uploads/editor/3153069783zzpkDyetOq.jpeg)
