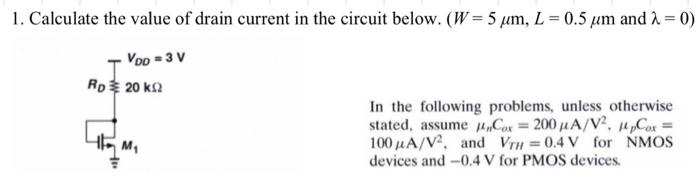

Calculate the value of drain current in the circuit below. (W = 5 μm, L = 0.5 μm and λ = 0) In the following problems, unless otherwise stated, assume μnCox = 200 μA/V2, μpCox = 100 μA/V2 , and VTH = 0.4 V for NMOS devices and -0.4 V for PMOS devices.
Image text
Calculate the value of drain current in the circuit below. (W = 5 μm, L = 0.5 μm and λ = 0) In the following problems, unless otherwise stated, assume μnCox = 200 μA/V2, μpCox = 100 μA/V2 , and VTH = 0.4 V for NMOS devices and -0.4 V for PMOS devices.
