Calculate the voltage gain of the circuit depicted in Fig. 6. Assume λ

Question

Notify Me Bookmark

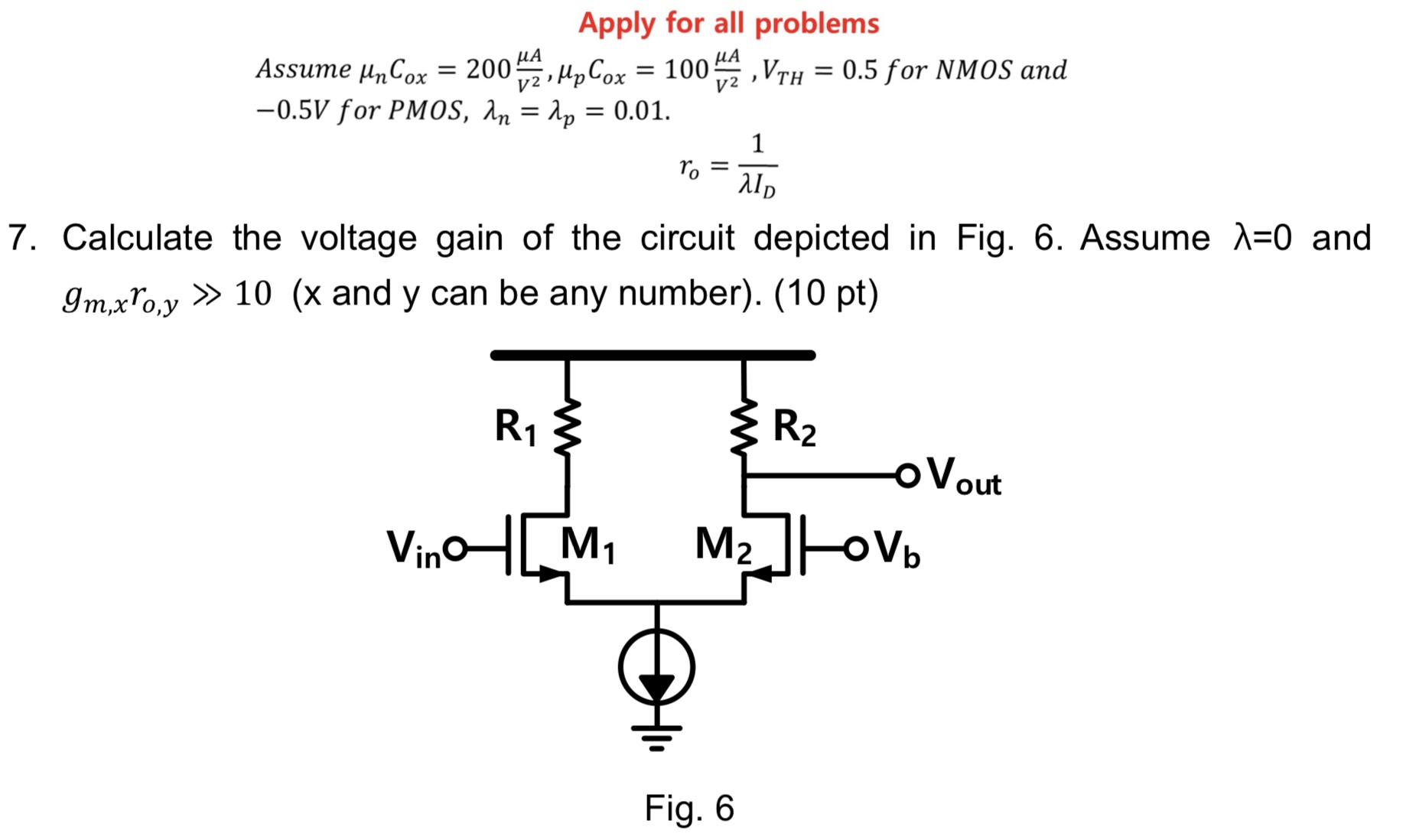

Calculate the voltage gain of the circuit depicted in Fig. 6. Assume λ = 0 and gm,xro,y ≫ 10 (x and y can be any number). (10 pt) Fig. 6 Apply for all problems Assume μnCox = 200 μA V2, μpCox = 100 μA V2, VTH = 0.5 for NMOS and −0.5 V for PMOS, λn = λp = 0.01. ro = 1 λID

Calculate the voltage gain of the circuit depicted in Fig. 6. Assume λ = 0 and gm,xro,y ≫ 10 (x and y can be any number). (10 pt) Fig. 6 Apply for all problems Assume μnCox = 200 μA V2, μpCox = 100 μA V2, VTH = 0.5 for NMOS and −0.5 V for PMOS, λn = λp = 0.01. ro = 1 λID

Image text

Apply for all problems Assume

μ_{n} C_{o x} = 200 \frac{μ A}{V^{2}}, μ_{p} C_{o x} = 100 \frac{μ A}{V^{2}}, V_{T H} = 0.5

for NMOS and

- 0.5 V

for

P M O S, λ_{n} = λ_{p} = 0.01

.

r_{o} = \frac{1}{λ I_{D}}

Calculate the voltage gain of the circuit depicted in Fig. 6. Assume $λ = 0$ and $g_{m, x} r_{o, y} ≫ 10$ (x and y can be any number). (10 pt) Fig. 6
