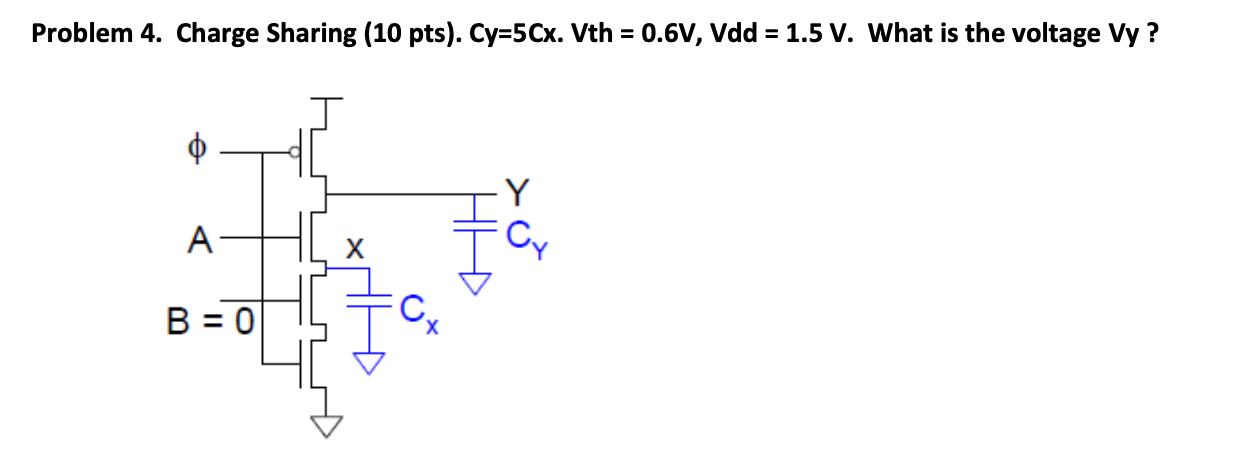

Charge Sharing (10 pts). Cy = 5Cx. Vth = 0.6V, Vdd = 1.5 V. What is the voltage Vy?

Charge Sharing (10 pts). Cy = 5Cx. Vth = 0.6V, Vdd = 1.5 V. What is the voltage Vy?

Image text
Charge Sharing (10 pts). Cy = 5Cx. Vth = 0.6V, Vdd = 1.5 V. What is the voltage Vy?

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Charge Redistribution/Charge Sharing: If Vdd = 1.5 V, CA and CB have initial zero charges. After the charge redistribution, what is the Vout? CA/CL = 1/5, CB/CL= 1/3
Solution
0 0

Q.2(a) An NMOS transistor, operating in the linear region with VDS = 50 mV, is found to conduct 25 μA for VGS = 1 V and 50 μA for VGS = 1.5 V. What is the apparent value of threshold voltage VT? If kn′ = 50 μA/V2, what is the device W/L ratio? What current would you expect to flow with VOS = 2 V and VDS = 0.1 V ? If the device is operated at VGS = 2 V, at what value of VDS will the drain end of the MOSFET channel just reach pinch-off? [4][CO1] (b) Design a CMOS inverter with switching threshold voltage of 2/3VDD. What is the resulting ratio of WP/WN ? (Assume LP = LN, μN = 2.5μP, |VTP| = VTN = 0.2VDD, [4][CO2]
Solution
3 0

Consider the circuit to the right. Vdd = 10 V, R2 = 20 kΩ, R4 = 2 kΩ, kn = 10 mA/V2 and Vtn = 1.5 V. Find values for R1 and R2 such that ID = 300 μA ± 1%. What is VDS in this case?
Solution
