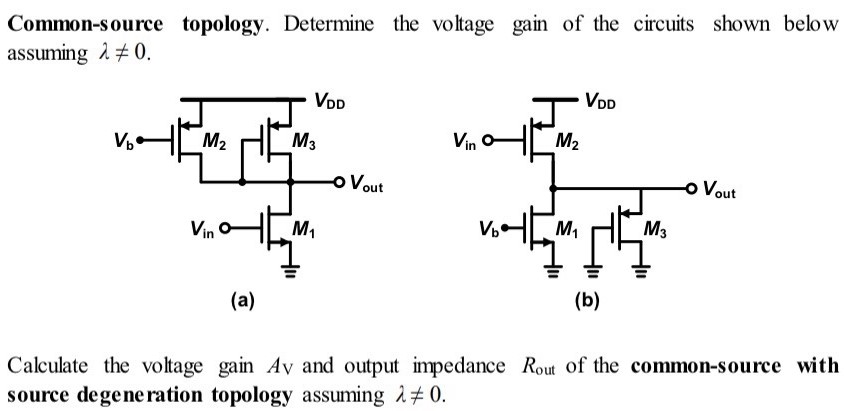

Common-source topology. Determine the voltage gain of the circuits shown below assuming λ ≠ 0. (a) (b) Calculate the voltage gain AV and output impedance Rout of the common-source with source degeneration topology assuming λ ≠ 0.

Common-source topology. Determine the voltage gain of the circuits shown below assuming λ ≠ 0. (a) (b) Calculate the voltage gain AV and output impedance Rout of the common-source with source degeneration topology assuming λ ≠ 0.

Image text
Common-source topology. Determine the voltage gain of the circuits shown below assuming λ ≠ 0 . (a) (b)
Calculate the voltage gain A V and output impedance R out of the common-source with source degene ration topology assuming λ ≠ 0 .

Detailed Answer
