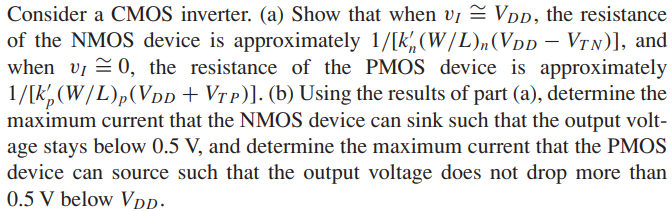

Consider a CMOS inverter. (a) Show that when vI ~= VDD , the resistance of the NMOS device is approximately 1/[k

Consider a CMOS inverter. (a) Show that when vI ~= VDD , the resistance of the NMOS device is approximately 1/[k

Image text
Consider a CMOS inverter. (a) Show that when vI ~= VDD , the resistance of the NMOS device is approximately 1/[k
