Consider a resistive-load inverter with the simplified Voltage Transfer Characteristic (VTC) illustrated below. The small signal equivalent circuit analysis reveals a slope |Av| = 3. What is the value of the input low voltage VIL?

Consider a resistive-load inverter with the simplified Voltage Transfer Characteristic (VTC) illustrated below. The small signal equivalent circuit analysis reveals a slope |Av| = 3. What is the value of the input low voltage VIL?

Image text

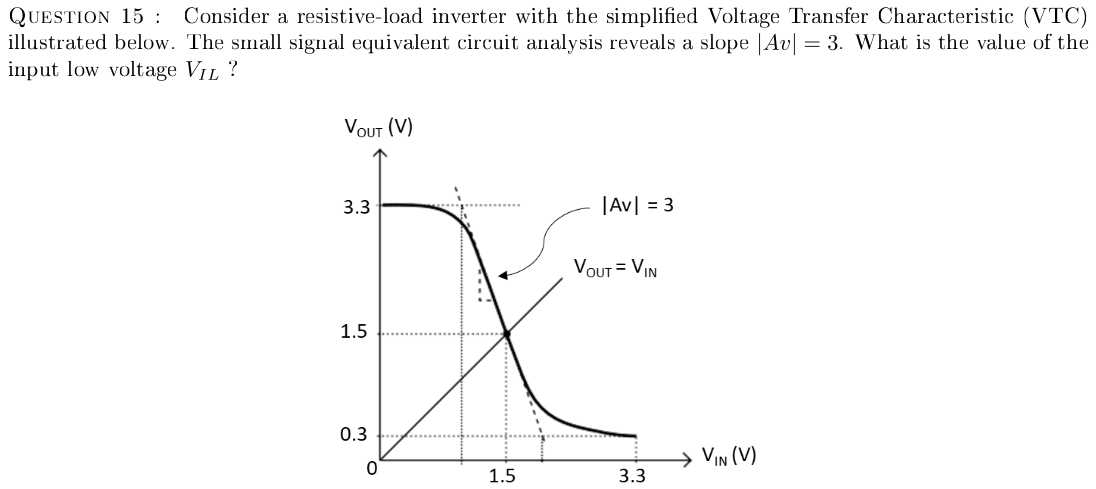

QUESTION 15 : Consider a resistive-load inverter with the simplified Voltage Transfer Characteristic (VTC) illustrated below. The small signal equivalent circuit analysis reveals a slope | A v | = 3 . What is the value of the input low voltage V I L ?
