Consider DRAM based on 1-Transistor DRAM cell and operating at VDD = 2.5 V. Threshold voltage of NMOS is 0.5 V and precharge voltage of bitline is 1.25 V. Cell storage capacitance is 50 fF and the bit-line capacitance is 1 pF. How much voltage swing is created on the bitline when a cell storing ' 1 ' is accessed for the read operation? Select one: a. 59.5 mV b. 119 mV c. 35.7 mV d. 1.25 V e. 47.6 mV

Consider DRAM based on 1-Transistor DRAM cell and operating at VDD = 2.5 V. Threshold voltage of NMOS is 0.5 V and precharge voltage of bitline is 1.25 V. Cell storage capacitance is 50 fF and the bit-line capacitance is 1 pF. How much voltage swing is created on the bitline when a cell storing ' 1 ' is accessed for the read operation? Select one: a. 59.5 mV b. 119 mV c. 35.7 mV d. 1.25 V e. 47.6 mV

Image text

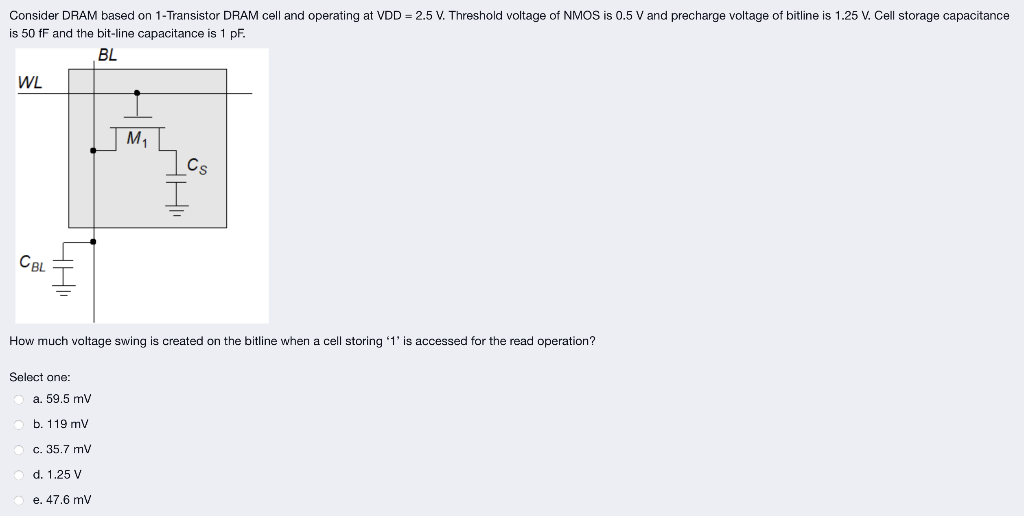

Consider DRAM based on 1 -Transistor DRAM cell and operating at VDD = 2.5 V . Threshold voltage of NMOS is 0.5 V and precharge voltage of bitline is 1.25 V . Cell storage capacitance is 50 f F and the bit-line capacitance is 1 p F .
How much voltage swing is created on the bitline when a cell storing ' 1 ' is accessed for the read operation?
Select one: a. 59.5 m V b. 119 m V c. 35.7 m V d. 1.25 V e. 47.6 m V

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)
  • Correct answers (2)
  • Complete solution (2)
  • Step-by-step solution (2)
  • Fully explained (2)

Similar/Related Questions

Problem 1: Consider a DRAM cell storing logic ' 1 '. The storage capacitance of the DRAM cell is CS = 50 fF and the bitline capacitance is CBL = 450 fF. The supply voltage (VDD) is 1 V and the threshold voltage of the access device is VT = 0.5 V. The constant leakage current for the cell is 250 pA at room temperature (T = 300 K). (a) Find the minimum voltage boosting at the gate of access transistor so that storage capacitance can be charged to full 1 V supply level. Consider the role of body effect and use body effect coefficient (γ) as 0.3 V and φf = 0.35 V. (10 points) (b) Considering the constant leakage current, find the maximum refresh period that can be tolerated for the cell? If DRAM temperature rises to 350 K, what will be the new maximum refresh period that can be tolerated? (5+5 points)

Solution
0 0

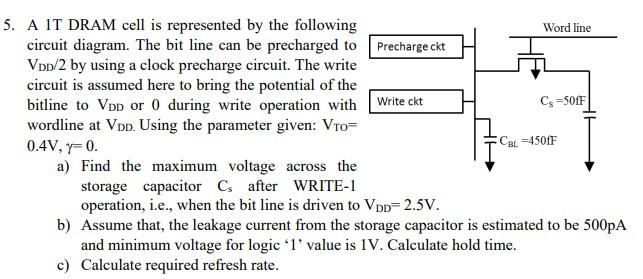

A 1T DRAM cell is represented by the following circuit diagram. The bit line can be precharged to VDD/2 by using a clock precharge circuit. The write circuit is assumed here to bring the potential of the bitline to VDD or 0 during write operation with wordline at VDD. Using the parameter given: VTO = 0.4 V, γ = 0. a) Find the maximum voltage across the storage capacitor Cs after WRITE-1 operation, i. e., when the bit line is driven to VDD = 2.5 V. b) Assume that, the leakage current from the storage capacitor is estimated to be 500 pA and minimum voltage for logic ' 1 ' value is 1 V. Calculate hold time. c) Calculate required refresh rate.
