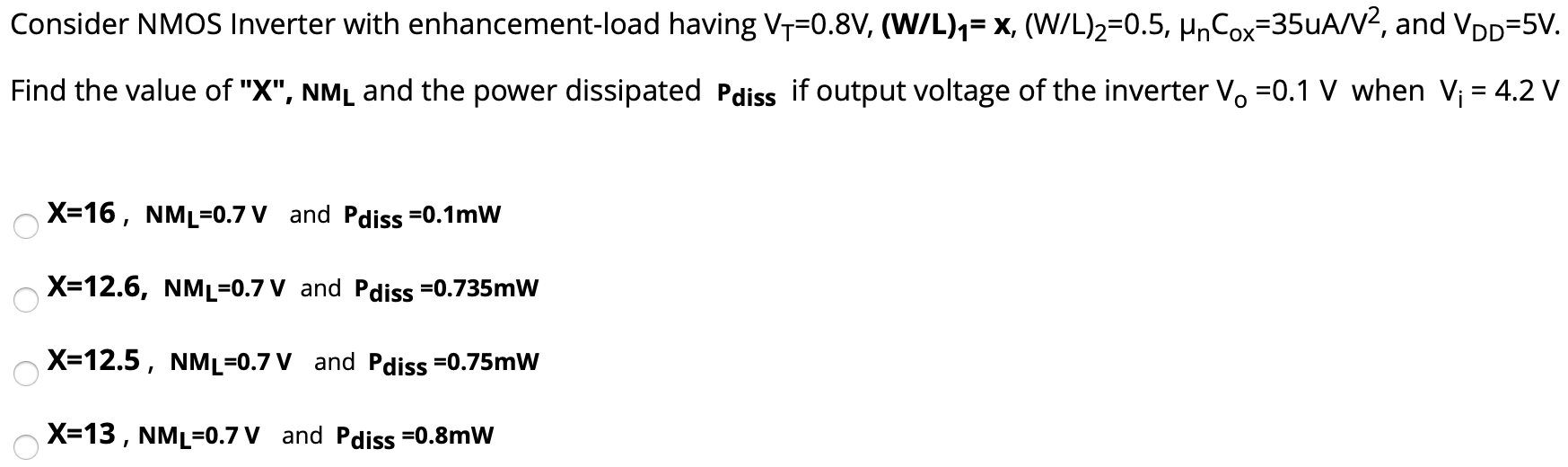

Consider NMOS Inverter with enhancement-load having VT = 0.8 V, (W/L)1 = x, (W/L)2 = 0.5, μnCox = 35 uA/V2, and VDD = 5 V. Find the value of "X", NML and the power dissipated Pdiss if output voltage of the inverter VO = 0.1 V when Vi = 4.2 V X = 16, NML = 0.7 V and Pdiss = 0.1 mW X = 12.6, NM = 0.7 V and Pdiss = 0.735 mW X = 12.5, NM = 0.7 V and Pdiss = 0.75 mW X = 13, NML = 0.7 V and Pdiss = 0.8 mW

Image text

Consider NMOS Inverter with enhancement-load having

V_{T} = 0.8 V, (W / L)_{1} = x, (W / L)_{2} = 0.5, μ_{n} C_{o x} = 35 u A / V^{2}

, and

V_{D D} = 5 V

. Find the value of " X ",

{N M}_{L}

and the power dissipated

P_{diss}

if output voltage of the inverter

V_{O} = 0.1 V

when

V_{i} = 4.2 V

X = 16

,

N M_{L} = 0.7 V

and

P_{diss} = 0.1 m W

X = 12.6, N M = 0.7 V

and

P_{diss} = 0.735 m W

X = 12.5, N M = 0.7 V

and

P_{diss} = 0.75 m W

X = 13, N M_{L} = 0.7 V

and

P_{diss} = 0.8 m W
