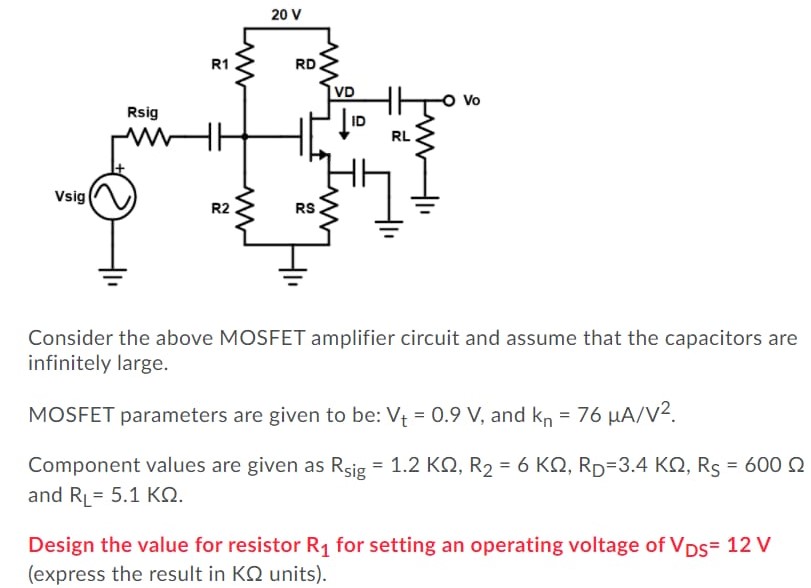

Consider the above MOSFET amplifier circuit and assume that the capacitors are infinitely large. MOSFET parameters are given to be: Vt = 0.9 V, and kn = 76 μA/V2. Component values are given as Rsig = 1.2 KΩ, R2 = 6 KΩ, RD = 3.4 KΩ, RS = 600 Ω and RL = 5.1 KΩ. Design the value for resistor R1 for setting an operating voltage of VDS = 12 V (express the result in KΩ units).

Consider the above MOSFET amplifier circuit and assume that the capacitors are infinitely large. MOSFET parameters are given to be: Vt = 0.9 V, and kn = 76 μA/V2. Component values are given as Rsig = 1.2 KΩ, R2 = 6 KΩ, RD = 3.4 KΩ, RS = 600 Ω and RL = 5.1 KΩ. Design the value for resistor R1 for setting an operating voltage of VDS = 12 V (express the result in KΩ units).

Image text

Consider the above MOSFET amplifier circuit and assume that the capacitors are infinitely large.

MOSFET parameters are given to be:

V_{t} = 0.9 V

, and

k_{n} = 76 μ A / V^{2}

. Component values are given as

R_{sig} = 1.2 K Ω, R_{2} = 6 K Ω, R_{D} = 3.4 K Ω, R_{S} = 600 Ω

and

R_{L} = 5.1 K Ω

.

Design the value for resistor

R_{1}

for setting an operating voltage of

V_{D S} = 12 V

(express the result in

K Ω

units).
