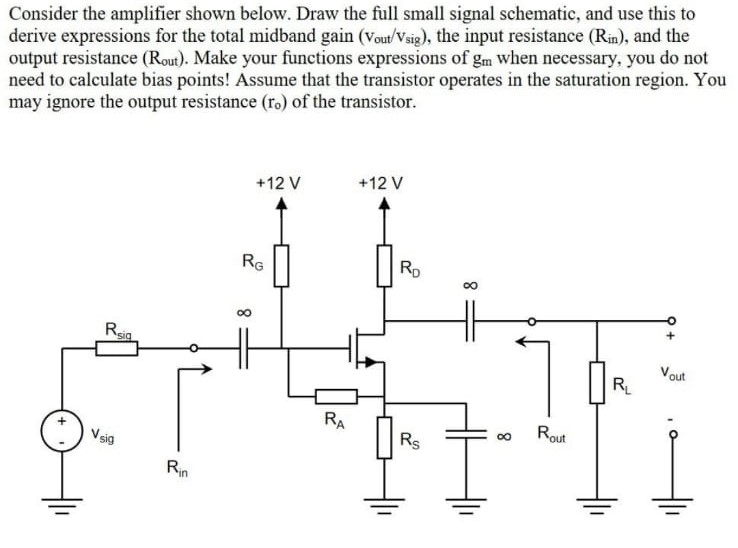

Consider the amplifier shown below. Draw the full small signal schematic, and use this to derive expressions for the total midband gain (vout/vsig), the input resistance (Rin), and the output resistance (Rout). Make your functions expressions of gm when necessary, you do not need to calculate bias points! Assume that the transistor operates in the saturation region. You may ignore the output resistance (ro) of the transistor.
