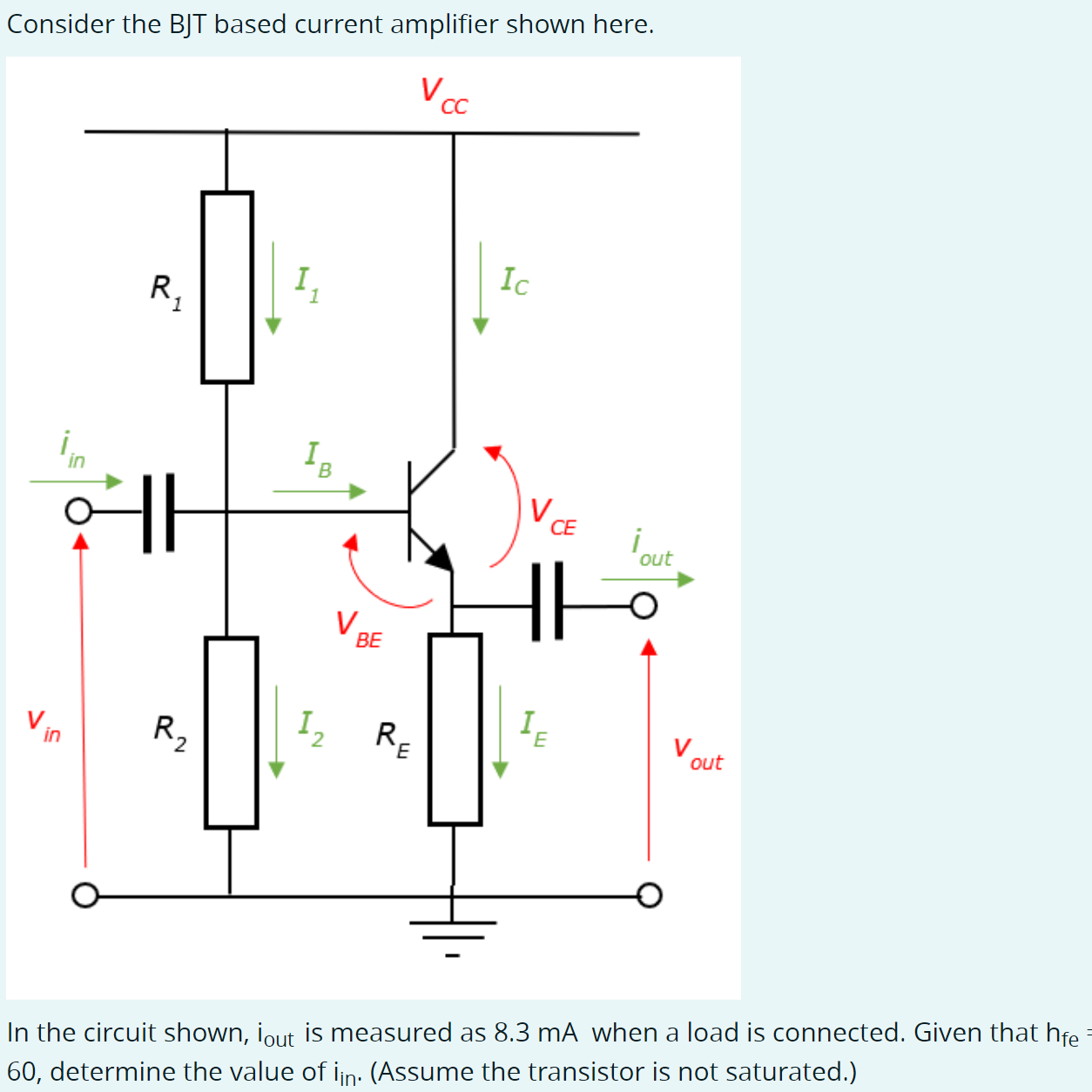

Consider the BJT based current amplifier shown here. In the circuit shown, iout is measured as 8.3 mA when a load is connected. Given that hfe = 60, determine the value of iin. (Assume the transistor is not saturated.)
Image text
Consider the BJT based current amplifier shown here. In the circuit shown, iout is measured as 8.3 mA when a load is connected. Given that hfe = 60, determine the value of iin. (Assume the transistor is not saturated.)
