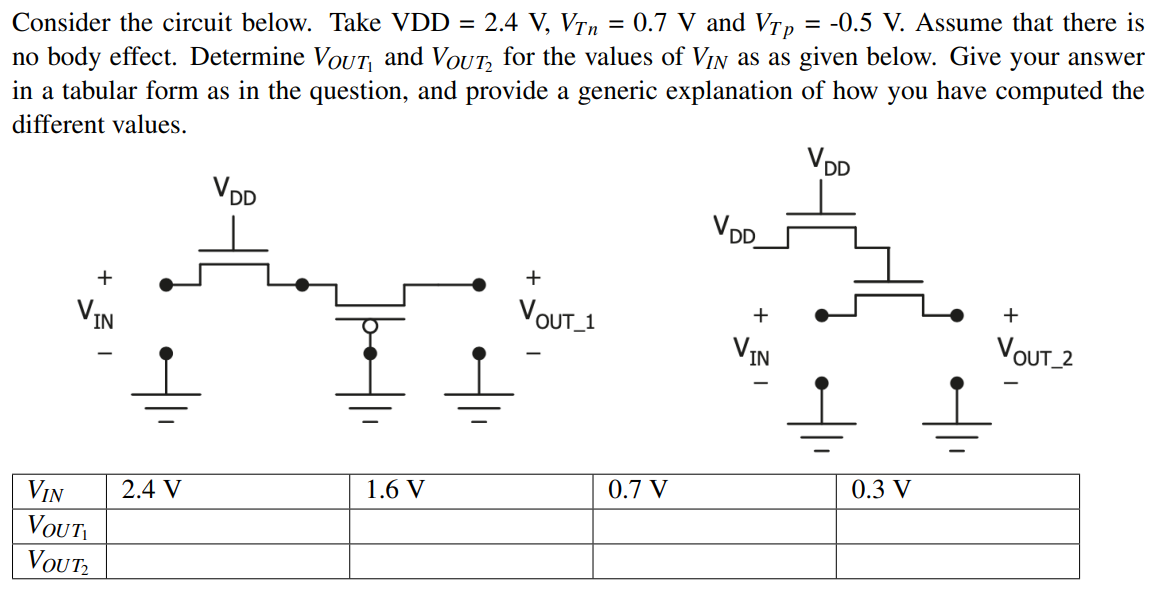

Consider the circuit below. Take VDD = 2.4 V, VTn = 0.7 V and VTp = −0.5 V. Assume that there is no body effect. Determine VOUT1 and VOUT2 for the values of VIN as as given below. Give your answer in a tabular form as in the question, and provide a generic explanation of how you have computed the different values.

Consider the circuit below. Take VDD = 2.4 V, VTn = 0.7 V and VTp = −0.5 V. Assume that there is no body effect. Determine VOUT1 and VOUT2 for the values of VIN as as given below. Give your answer in a tabular form as in the question, and provide a generic explanation of how you have computed the different values.

Image text
Consider the circuit below. Take VDD = 2.4 V , V T n = 0.7 V and V T p = − 0.5 V . Assume that there is no body effect. Determine V O U T 1 and V O U T 2 for the values of V I N as as given below. Give your answer in a tabular form as in the question, and provide a generic explanation of how you have computed the different values.
