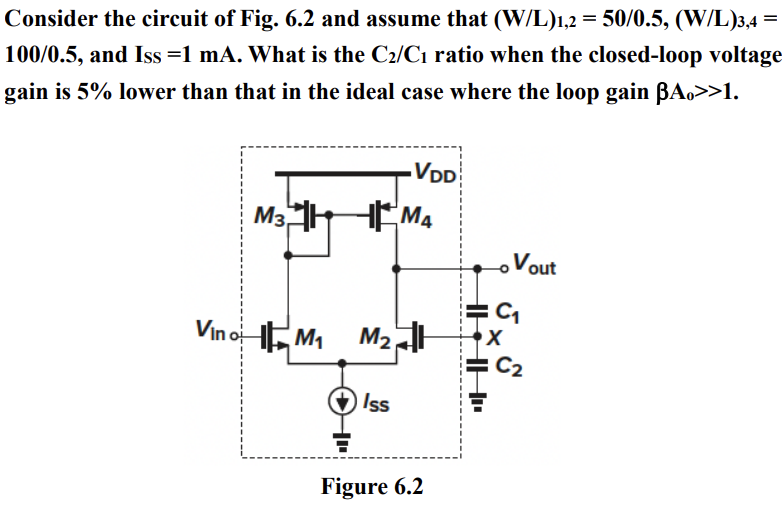

Consider the circuit of Fig. 6.2 and assume that (W/L)1,2 = 50/0.5, (W/L)3,4 = 100/0.5, and ISS = 1 mA. What is the C2/C1 ratio when the closed-loop voltage gain is 5% lower than that in the ideal case where the loop gain βA0 >> 1.
Image text
Consider the circuit of Fig. 6.2 and assume that (W/L)1,2 = 50/0.5, (W/L)3,4 = 100/0.5, and ISS = 1 mA. What is the C2/C1 ratio when the closed-loop voltage gain is 5% lower than that in the ideal case where the loop gain βA0 >> 1.
