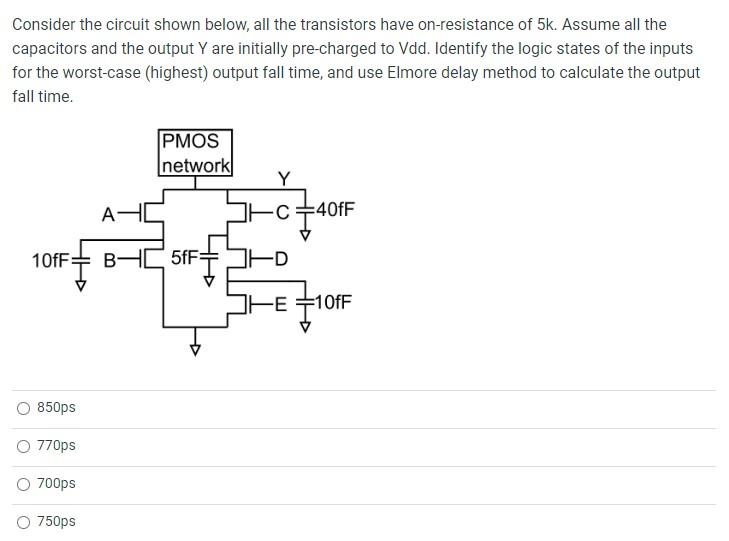

Consider the circuit shown below, all the transistors have on-resistance of 5k. Assume all the capacitors and the output Y are initially pre-charged to Vdd. Identify the logic states of the inputs for the worst-case (highest) output fall time, and use Elmore delay method to calculate the output fall time

Consider the circuit shown below, all the transistors have on-resistance of 5k. Assume all the capacitors and the output Y are initially pre-charged to Vdd. Identify the logic states of the inputs for the worst-case (highest) output fall time, and use Elmore delay method to calculate the output fall time

Image text
Consider the circuit shown below, all the transistors have on-resistance of 5k. Assume all the capacitors and the output Y are initially pre-charged to Vdd. Identify the logic states of the inputs for the worst-case (highest) output fall time, and use Elmore delay method to calculate the output fall time

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)
  • Correct answers (1)
  • Complete solution (1)
  • Step-by-step solution (1)
  • Fully explained (1)

Similar/Related Questions

In the dynamic logic circuit shown below, all the transistors have the minimum channel length, and their sizes (widths) are marked. The inverter at the output is a standard static CMOS inverter with a PMOS size of 2 and an NMOS size of 1 . For a unit-sized NMOS or PMOS transistor, the intrinsic capacitance at its drain or source terminal is CD, and the capacitance at its gate is CG. For unit-sized NMOS and PMOS transistors, their onresistances are RN and RP, respectively. CD = CG = 1 fF and RP = 2 RN = 2 kΩ. (a) Express y as a Boolean function of the inputs A, B, C and D in the evaluation phase (CLK = 1). (b) Find the capacitances at nodes y, a, b and c, respectively. (c) Let A = B = D = 1 and C = 0 and suppose nodes a, b and c are at 0 V in the pre-charge phase (CLK = 0). Estimate the time it takes for the voltage at y to decrease from VDD to VDD/2 in the evaluation phase. (d) Repeat (c) if nodes a, b and c are at VDD in the pre-charge phase. (e) If the inputs are C = 1 and A = B = D = 0 and suppose nodes a, b and c are at 0 V in the pre-charge phase. Considering the charge sharing effect, what is the voltage at node y in the evaluation phase? It is known VDD = 2.5 V, VTN = 0.5 V and the body effect of the transistors can be ignored.

Solution
0 0

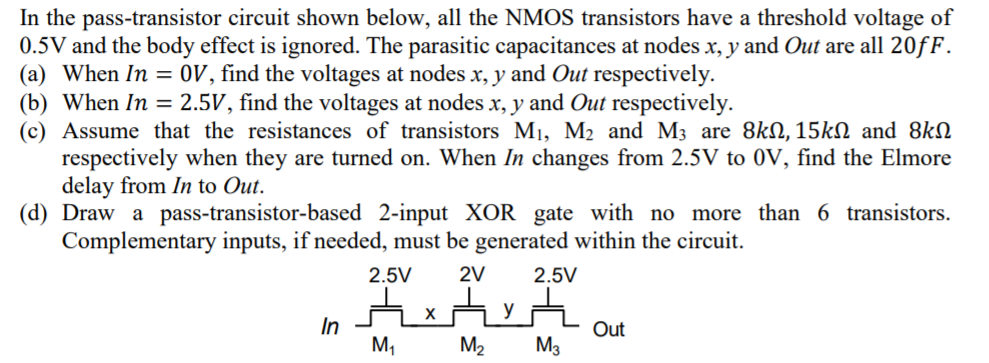

In the pass-transistor circuit shown below, all the NMOS transistors have a threshold voltage of 0.5 V and the body effect is ignored. The parasitic capacitances at nodes x, y and Out are all 20 fF. (a) When In = 0 V, find the voltages at nodes x, y and Out respectively. (b) When In = 2.5 V, find the voltages at nodes x, y and Out respectively. (c) Assume that the resistances of transistors M1, M2 and M3 are 8 kΩ, 15 kΩ and 8 kΩ respectively when they are turned on. When In changes from 2.5 V to 0 V, find the Elmore delay from In to Out. (d) Draw a pass-transistor-based 2-input XOR gate with no more than 6 transistors. Complementary inputs, if needed, must be generated within the circuit.
