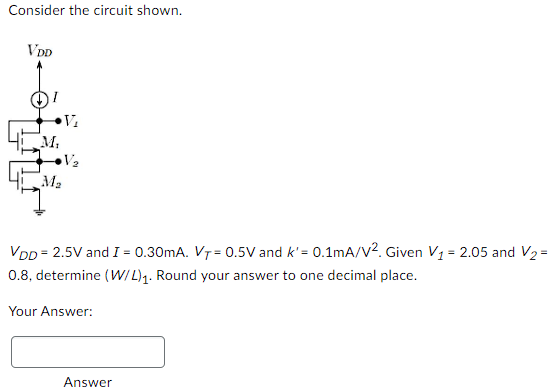

Consider the circuit shown. VDD = 2.5 V and I = 0.30 mA. VT = 0.5 V and k′ = 0.1 mA/V2. Given V1 = 2.05 and V2 = 0.8 , determine (W/L)1. Round your answer to one decimal place. Your Answer: Answer

Consider the circuit shown. VDD = 2.5 V and I = 0.30 mA. VT = 0.5 V and k′ = 0.1 mA/V2. Given V1 = 2.05 and V2 = 0.8 , determine (W/L)1. Round your answer to one decimal place. Your Answer: Answer

Image text
Consider the circuit shown. V D D = 2.5 V and I = 0.30 m A . V T = 0.5 V and k ′ = 0.1 m A / V 2 . Given V 1 = 2.05 and V 2 = 0.8 , determine ( W / L ) 1 . Round your answer to one decimal place.
Your Answer: ◻ Answer
