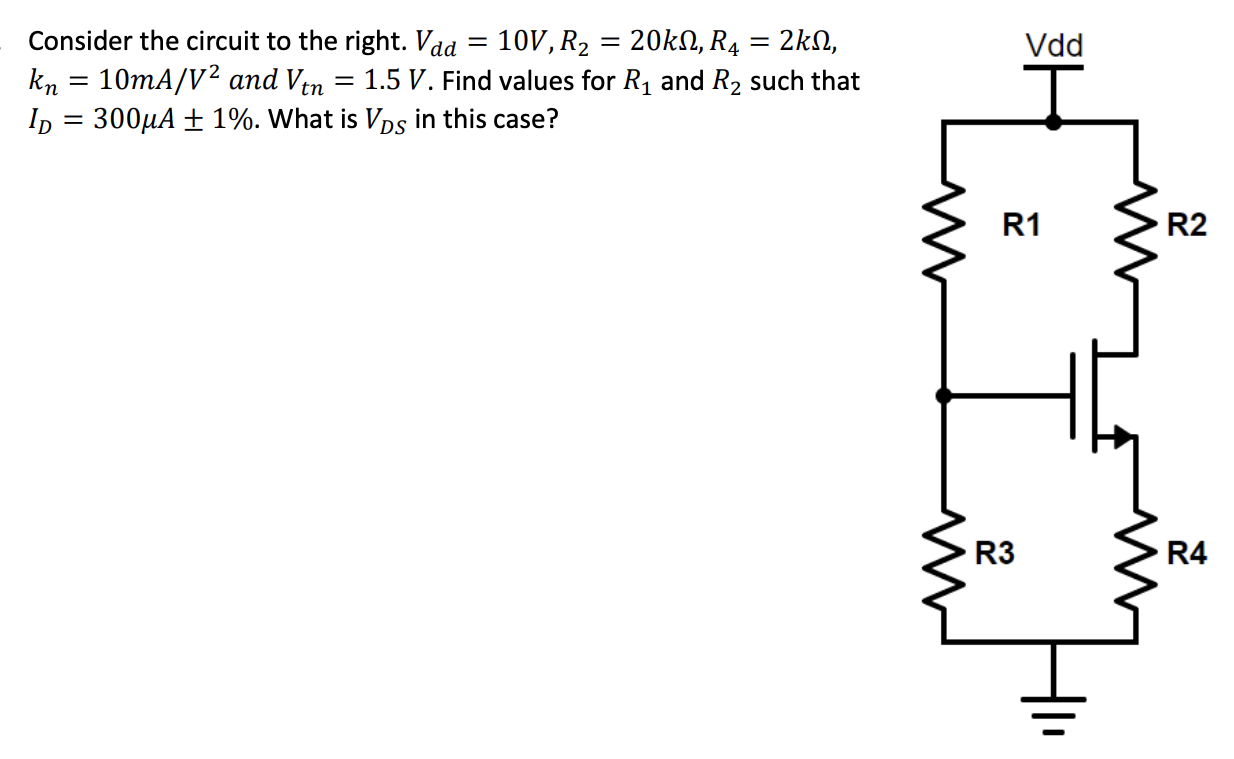

Consider the circuit to the right. Vdd = 10 V, R2 = 20 kΩ, R4 = 2 kΩ, kn = 10 mA/V2 and Vtn = 1.5 V. Find values for R1 and R2 such that ID = 300 μA ± 1%. What is VDS in this case?

Consider the circuit to the right. Vdd = 10 V, R2 = 20 kΩ, R4 = 2 kΩ, kn = 10 mA/V2 and Vtn = 1.5 V. Find values for R1 and R2 such that ID = 300 μA ± 1%. What is VDS in this case?

Image text
Consider the circuit to the right. V d d = 10 V , R 2 = 20 k Ω , R 4 = 2 k Ω , k n = 10 m A / V 2 and V t n = 1.5 V . Find values for R 1 and R 2 such that I D = 300 μ A ± 1 % . What is V D S in this case?
