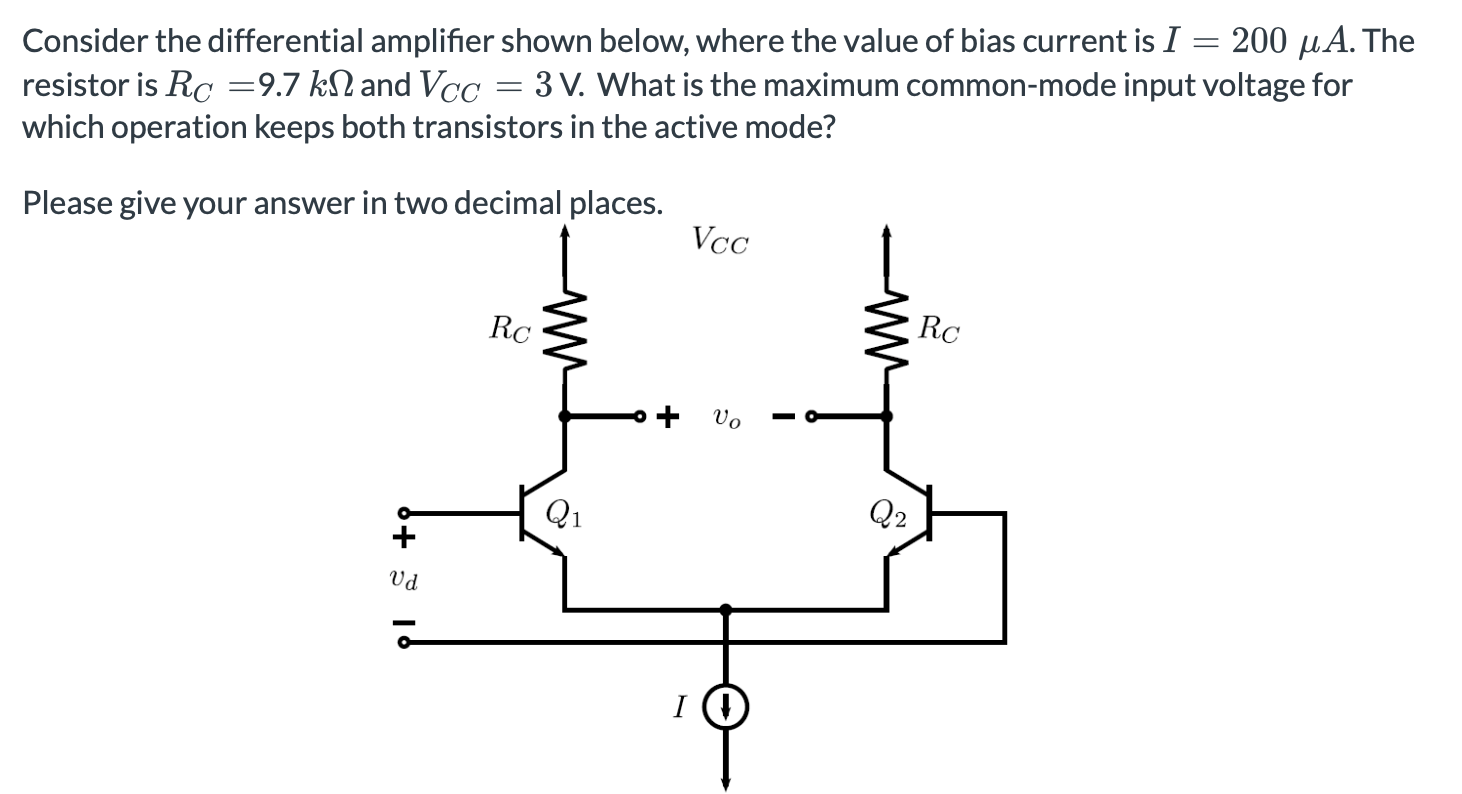

Consider the differential amplifier shown below, where the value of bias current is I = 200 μA. The resistor is RC = 9.7 kΩ and VCC = 3 V. What is the maximum common-mode input voltage for which operation keeps both transistors in the active mode? Please give your answer in two decimal places.

Consider the differential amplifier shown below, where the value of bias current is I = 200 μA. The resistor is RC = 9.7 kΩ and VCC = 3 V. What is the maximum common-mode input voltage for which operation keeps both transistors in the active mode? Please give your answer in two decimal places.

Image text
Consider the differential amplifier shown below, where the value of bias current is I = 200 μ A . The resistor is R C = 9.7 k Ω and V C C = 3 V . What is the maximum common-mode input voltage for which operation keeps both transistors in the active mode?
Please give your answer in two decimal places.
