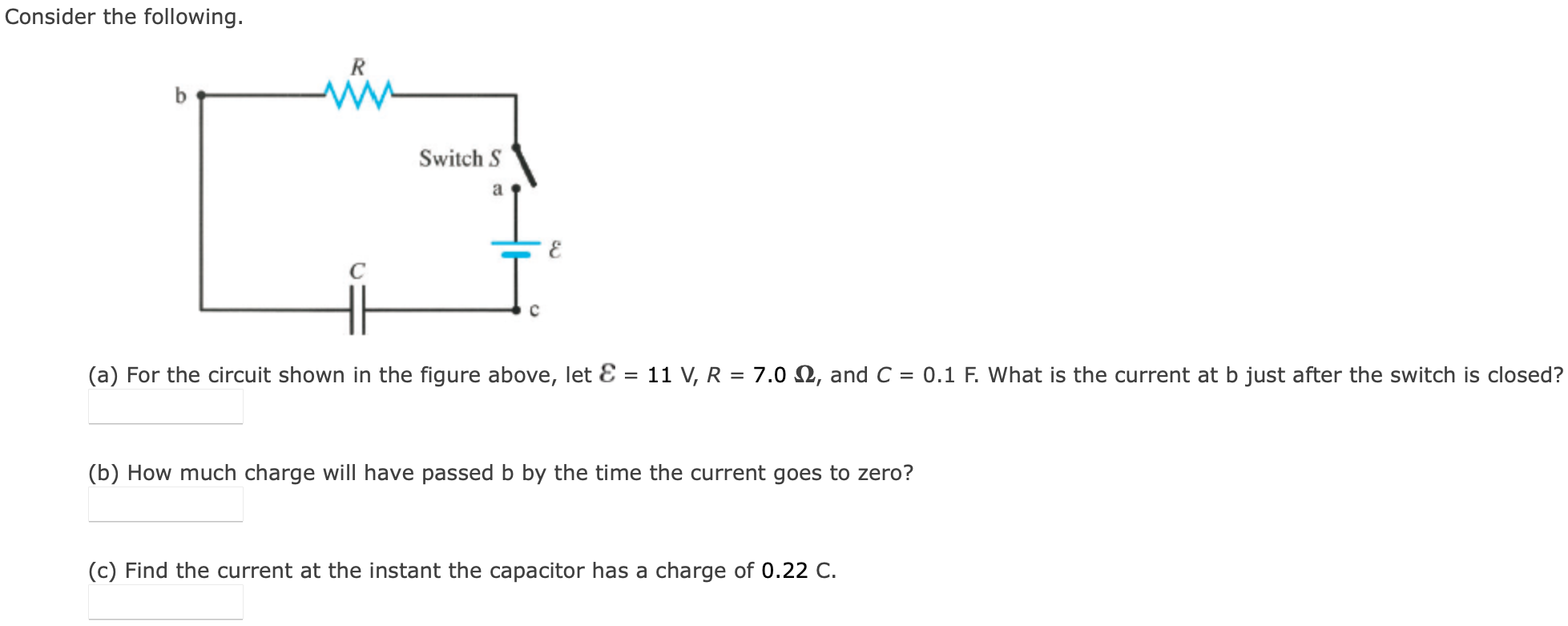

Consider the following. (a) For the circuit shown in the figure above, let E = 11 V, R = 7.0 Ω, and C = 0.1 F. What is the current at b just after the switch is closed? (b) How much charge will have passed b by the time the current goes to zero? (c) Find the current at the instant the capacitor has a charge of 0.22 C .

Consider the following. (a) For the circuit shown in the figure above, let E = 11 V, R = 7.0 Ω, and C = 0.1 F. What is the current at b just after the switch is closed? (b) How much charge will have passed b by the time the current goes to zero? (c) Find the current at the instant the capacitor has a charge of 0.22 C .

Image text
Consider the following. (a) For the circuit shown in the figure above, let E = 11 V , R = 7.0 Ω , and C = 0.1 F . What is the current at b just after the switch is closed? ◻ (b) How much charge will have passed b by the time the current goes to zero? (c) Find the current at the instant the capacitor has a charge of 0.22 C .
