Consider the following circuit: (W/L)1 = (W/L)2 = 2 μnCox = 100 μA/V2 V Tn = 1 V λn = 0.05 V−1 (a) Find the DC Drain current Io such that the DC output voltage Vo = 3 V. You can ignore channel length modulation (i. e. λ = 0 ) for this part.

Consider the following circuit: (W/L)1 = (W/L)2 = 2 μnCox = 100 μA/V2 V Tn = 1 V λn = 0.05 V−1 (a) Find the DC Drain current Io such that the DC output voltage Vo = 3 V. You can ignore channel length modulation (i. e. λ = 0 ) for this part.

Image text

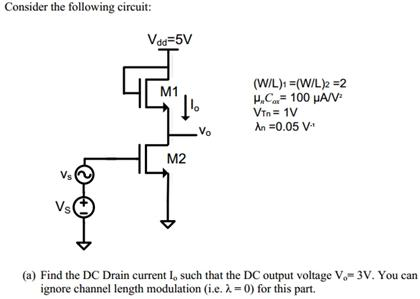

Consider the following circuit:
( W / L ) 1 = ( W / L ) 2 = 2 μ n C α = 100 μ A V 2 V T n = 1 V λ n = 0.05 V − 1
(a) Find the DC Drain current I ∘ such that the DC output voltage V o = 3 V . You can ignore channel length modulation (i.e. λ = 0 ) for this part.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

The introduction to basic logic-circuit concepts that apply to MOSFET circuits is the most popular technology for implementation of digital systems. The two families of MOS logic circuits introduce are NMOS and CMOS (a) Given a NMOS inverter with a current source pull-up using the following specification data: μnCox = 50 μA/V2, μpCox = 25 μA/V2 VTn = −VTp = 1 V, VDD = 5 V, Ln = Lp = 1.5 μm λn = λp = 0.1 V−1 Find the width of the device so its saturation current is 200 μA when VB = 3 V. (5 marks) ii. Calculate the required width of the n-channel device so VOUT is 0.05 V when VIN is 5 V. (5 marks) (b) Consider a simple NMOS inverter with a resistor pull-up as shown in Figure 5 using the following specification data. i. Determine the value of pull-up resistor, R for the inverter. (4 marks) ii. Find the required value for fabrication width and length, (W/L). ( 6 marks) μnCox = 100 μA/V2, VTn = −VTp = 1 V V1 = 5 V, VDD = 5 V, VO = 50 mV, rDS = 50 ohm
Solution
0 0

(a) Choose VB such that M1 is 300mV away from the triode region (VDS1 = VGS1-VTH1+300mV; M1 and M2 operate in Saturation region). (b) Calculate the small-signal voltage gain (VOUT/VIN). (c) Assume VB = 1.43 V, calculate the maximum output voltage swing to keep all transistors in saturation. Neglect channel length modulation. (d) Assume the maximum output swing is VOUT = 2.23 VPP, Calculate the swing at node X. In Fig. 2, assume (W/L)1 = 12 μm/0.18 μm, (W/L)2 = 24 μm/0.36 μm, ID1 = ID2 = 0.5 mA, and RD = 2 kΩ, VTH,N = 0.5 V, μnCox = 150 μA/V2, VDD = 3.3 V, λn = 0.1 V-1. Neglect body effect. Neglect channel length modulation except doing output impedance calculation.
Solution
5 0

24. In Fig. 7, VDD = 3 V, (W/L)1 = (20μm/0.2μm), (W/L)2 = (W/L)3 = (W/L)4 = (10μm/0.2μm), R1 = R2 = R3 = 100 kΩ. C1 and C2 are very large, and VB1 = 2 V, VB2 = 1 V. λn = λp = 0.01/V (a) Express the small signal gain of this amplifier using the small signal parameters of MOSFETs (gm, ro) and the resistance of resistors (R1, R2, R3). (10) (b) Ignoring the channel length modulation, determine Vin so that Vx = 2.5 V. (10) (c) Determine the small signal gain of the amplifier at the value of Vin obtained in (b).(10) Figure 7 μnCox = 100 μA/V2, μpCox = 40 μA/V2, Vthn = |Vthp | = 0.5 V, λn = λp = 0
Solution
0 0
