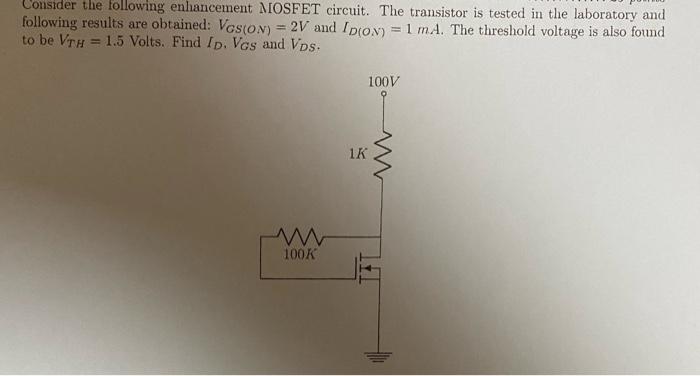

Consider the following enhancement MOSFET circuit. The transistor is tested in the laboratory and following results are obtained: VGS(ON)=2V and ID(ON)=1 mA. The threshold voltage is also found to be VTH=1.5 Volts. Find ID, VGS and VDS.
