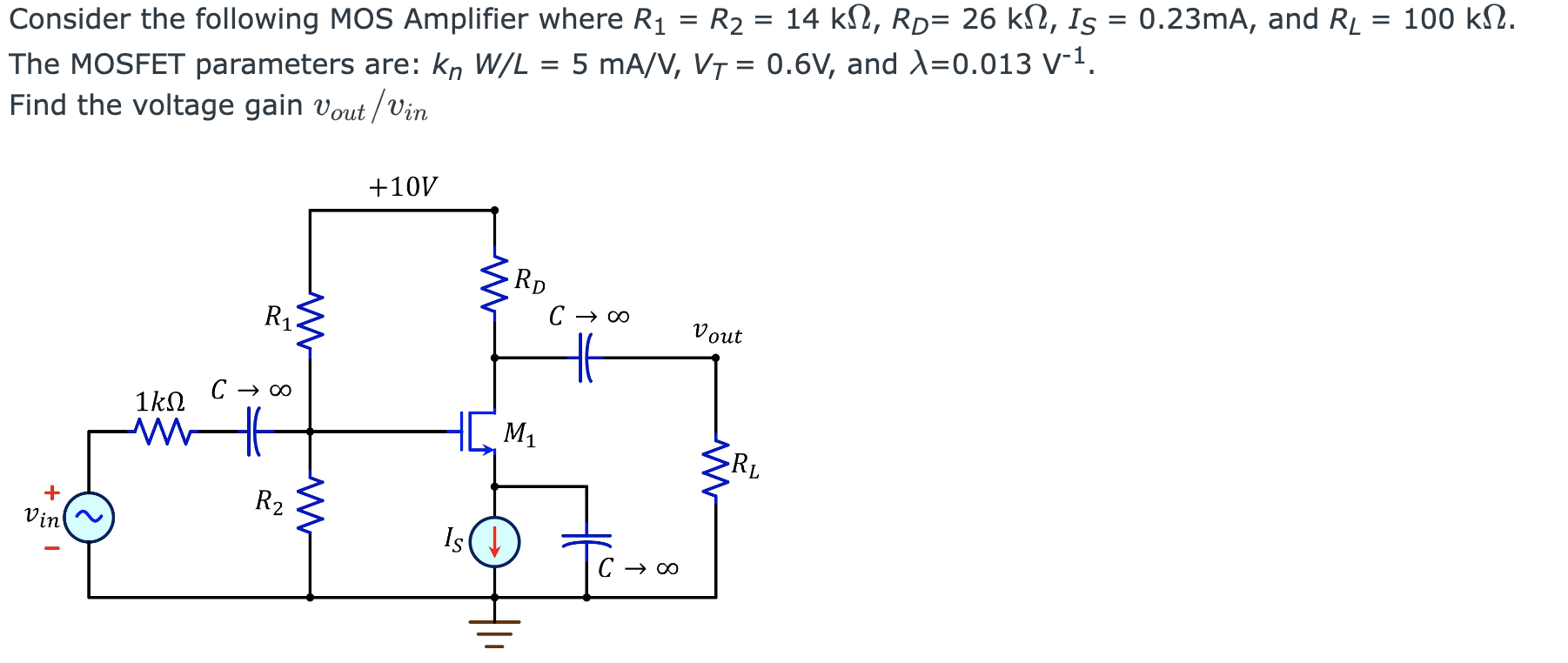

Consider the following MOS Amplifier where R1 = R2 = 14 kΩ, RD = 26 kΩ, IS = 0.23 mA, and RL = 100 kΩ. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V^-1. Find the voltage gain vout/vin.

Consider the following MOS Amplifier where R1 = R2 = 14 kΩ, RD = 26 kΩ, IS = 0.23 mA, and RL = 100 kΩ. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V^-1. Find the voltage gain vout/vin.

Image text
Consider the following MOS Amplifier where R1 = R2 = 14 kΩ, RD = 26 kΩ, IS = 0.23 mA, and RL = 100 kΩ. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V^-1. Find the voltage gain vout/vin.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (2)
  • Complete solution (2)
  • Step-by-step solution (2)
  • Fully explained (2)

Similar/Related Questions

Consider the following MOS Amplifier where R1 = R2 = 14 kΩ, RD = 28 kΩ, IS = 0.22 mA, and RL = 100 kΩ. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V−1. Find the voltage gain vout/vin
Solution
1 0

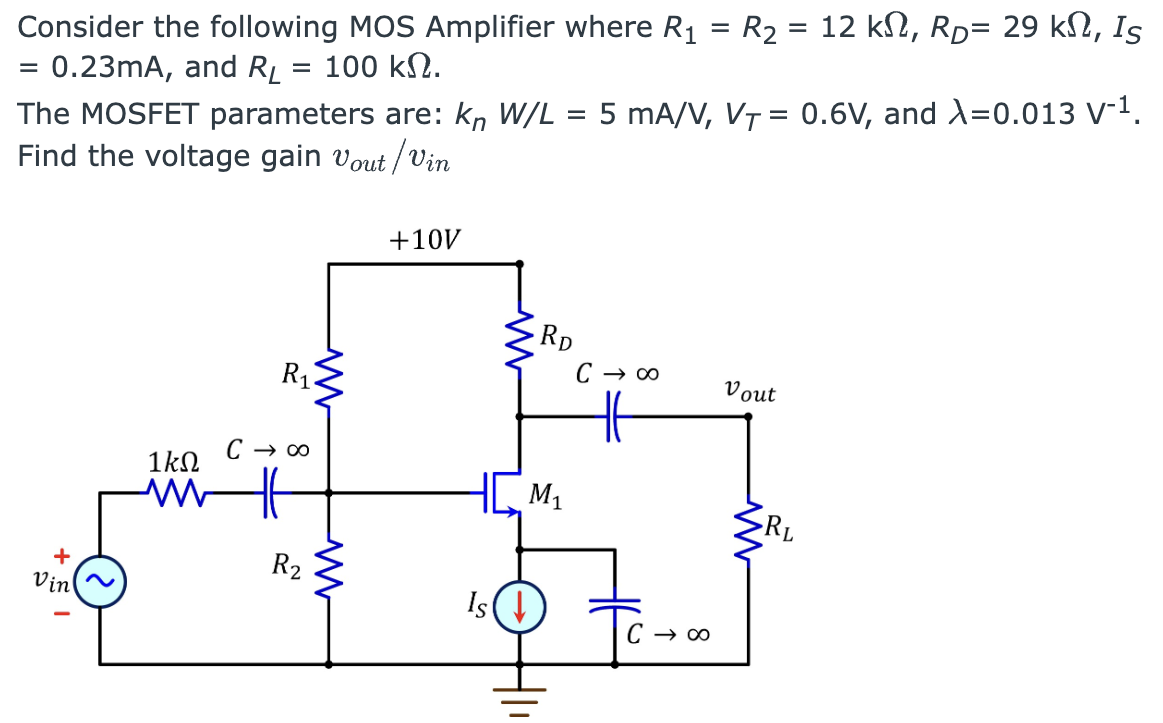

Consider the following MOS Amplifier where R1 = R2 = 12 kΩ, RD = 29 kΩ, IS = 0.23 mA, and RL = 100 kΩ. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V−1. Find the voltage gain vout/vin
Solution
1 0

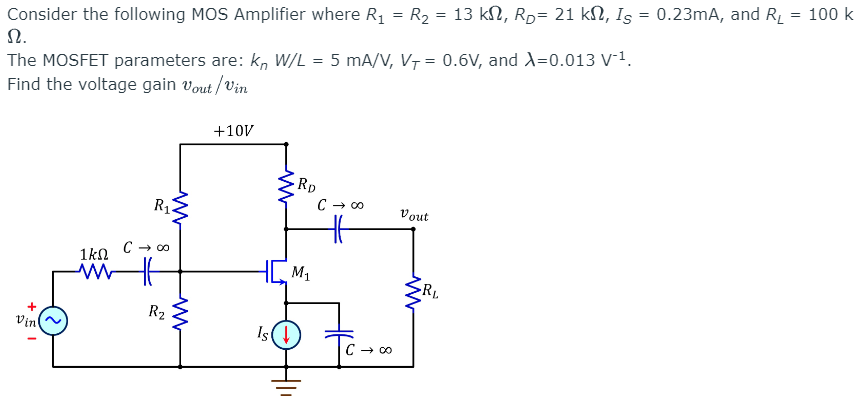

Consider the following MOS Amplifier where R1 = R2 = 13 kΩ, RD = 21 kΩ, IS = 0.23 mA, and RL = 100 k Ω. The MOSFET parameters are: knW/L = 5 mA/V, VT = 0.6 V, and λ = 0.013 V−1. Find the voltage gain vout /vin
