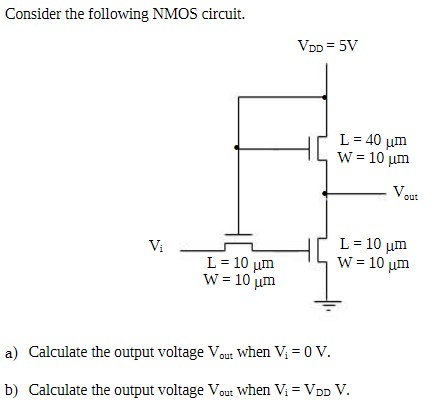

Consider the following NMOS circuit. a) Calculate the output voltage Vout when Vi = 0 V. b) Calculate the output voltage Vout when Vi = VDDV.

Consider the following NMOS circuit. a) Calculate the output voltage Vout when Vi = 0 V. b) Calculate the output voltage Vout when Vi = VDDV.

Image text
Consider the following NMOS circuit. a) Calculate the output voltage V out when V i = 0 V . b) Calculate the output voltage V out when V i = V D D V .
