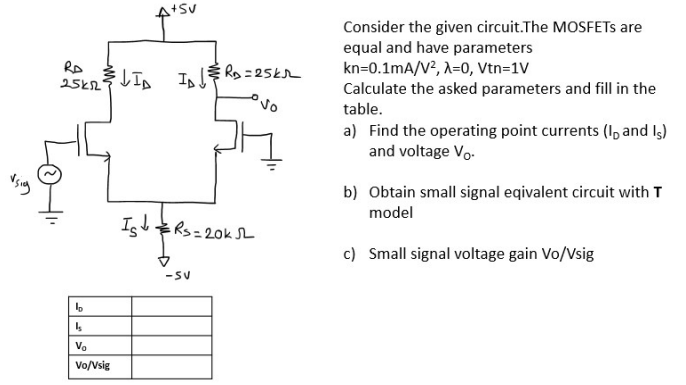

Consider the given circuit. The MOSFETs are equal and have parameters kn = 0.1 mA/V2, λ = 0, Vtn = 1 V Calculate the asked parameters and fill in the table. a) Find the operating point currents (ID and IS) and voltage VO. b) Obtain small signal equivalent circuit with T model c) Small signal voltage gain Vo/Vsig

Consider the given circuit. The MOSFETs are equal and have parameters kn = 0.1 mA/V2, λ = 0, Vtn = 1 V Calculate the asked parameters and fill in the table. a) Find the operating point currents (ID and IS) and voltage VO. b) Obtain small signal equivalent circuit with T model c) Small signal voltage gain Vo/Vsig

Image text
Consider the given circuit.The MOSFETs are equal and have parameters k n = 0.1 m A / V 2 , λ = 0 , V t n = 1 V Calculate the asked parameters and fill in the table. a) Find the operating point currents ( I D and I S ) and voltage V O . b) Obtain small signal eqivalent circuit with T model c) Small signal voltage gain Vo/Vsig

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

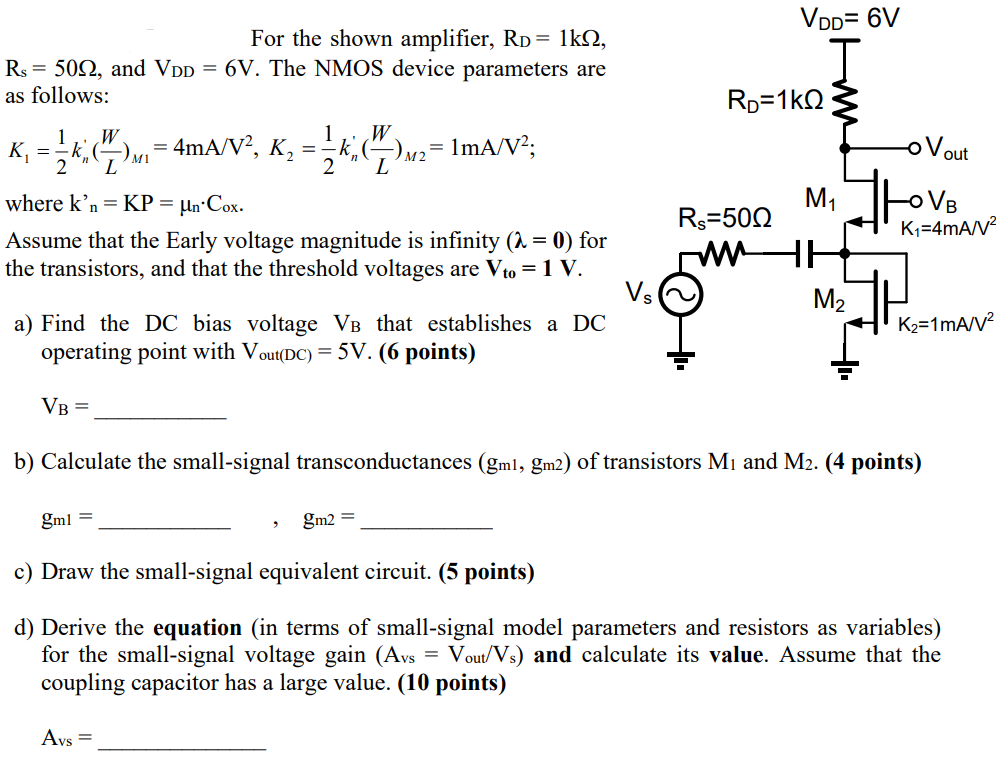

For the shown amplifier, RD = 1kΩ, Rs = 50Ω, and VDD = 6V. The NMOS device parameters are as follows: K1 = 1/2kn’(W/L)M1 = 4 mA/V2, K2 = 1/2kn’(W/L)M2 = 1 mA/V2; where kn = KP = μn⋅Cox Assume that the Early voltage magnitude is infinity (λ = 0) for the transistors, and that the threshold voltages are Vto = 1 V. a) Find the DC bias voltage VB that establishes a DC operating point with Vout (DC) = 5 V. (6 points) VB= b) Calculate the small-signal transconductances (gm1, gm2) of transistors M1 and M2. (4 points) gm1 = , gm2 = c) Draw the small-signal equivalent circuit. (5 points) d) Derive the equation (in terms of small-signal model parameters and resistors as variables) for the small-signal voltage gain (Avs = Vout/Vs) and calculate its value. Assume that the coupling capacitor has a large value. (10 points) Avs =
