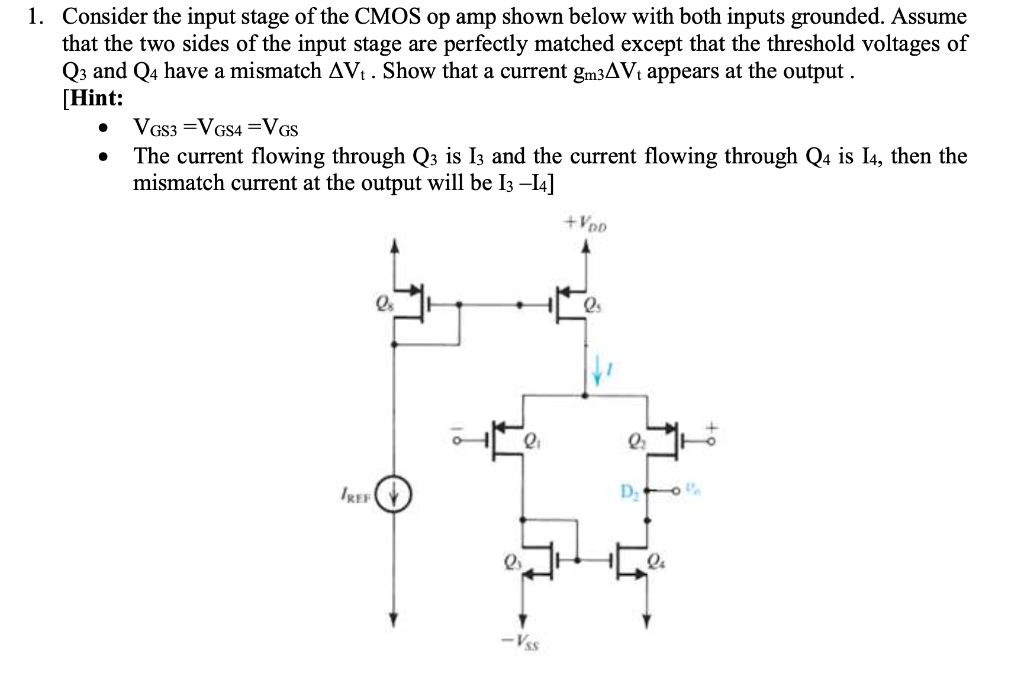

Consider the input stage of the CMOS op amp shown below with both inputs grounded. Assume that the two sides of the input stage are perfectly matched except that the threshold voltages of Q3 and Q4 have a mismatch Vt . Show that a current gm3Vt appears at the output. [Hint: VGS3 = VGS4 = VGS The current flowing through Q3 is I3 and the current flowing through Q4 is I4, then the mismatch current at the output will be I3 -I4
