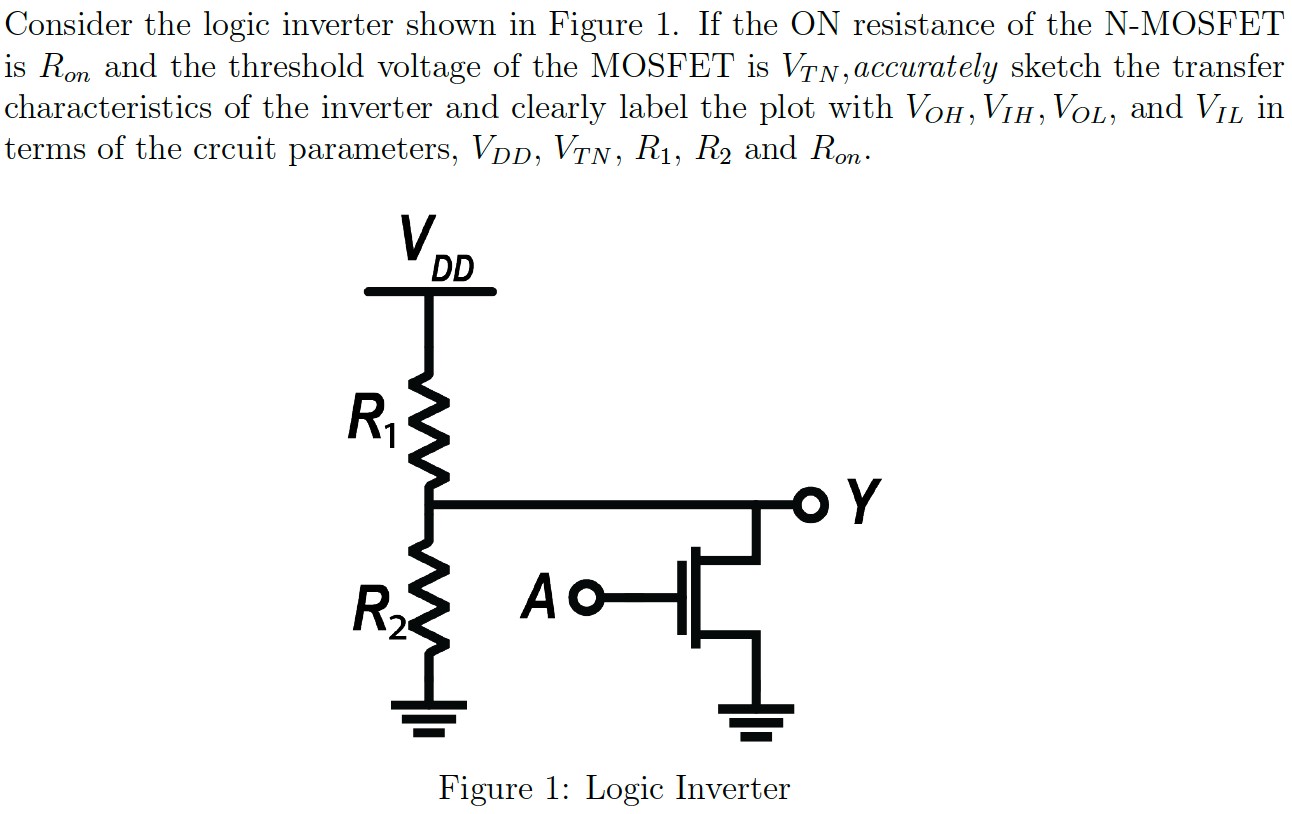

Consider the logic inverter shown in Figure 1. If the ON resistance of the NMOSFET is Ron and the threshold voltage of the MOSFET is VTN, accurately sketch the transfer characteristics of the inverter and clearly label the plot with VOH, VIH, VOL, and VIL in terms of the circuit parameters, VDD, VTN, R1, R2 and Ron. Figure 1: Logic Inverter

Consider the logic inverter shown in Figure 1. If the ON resistance of the NMOSFET is Ron and the threshold voltage of the MOSFET is VTN, accurately sketch the transfer characteristics of the inverter and clearly label the plot with VOH, VIH, VOL, and VIL in terms of the circuit parameters, VDD, VTN, R1, R2 and Ron. Figure 1: Logic Inverter

Image text
Consider the logic inverter shown in Figure 1. If the ON resistance of the NMOSFET is Ron and the threshold voltage of the MOSFET is VTN, accurately sketch the transfer characteristics of the inverter and clearly label the plot with VOH, VIH, VOL, and VIL in terms of the circuit parameters, VDD, VTN, R1, R2 and Ron. Figure 1: Logic Inverter

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

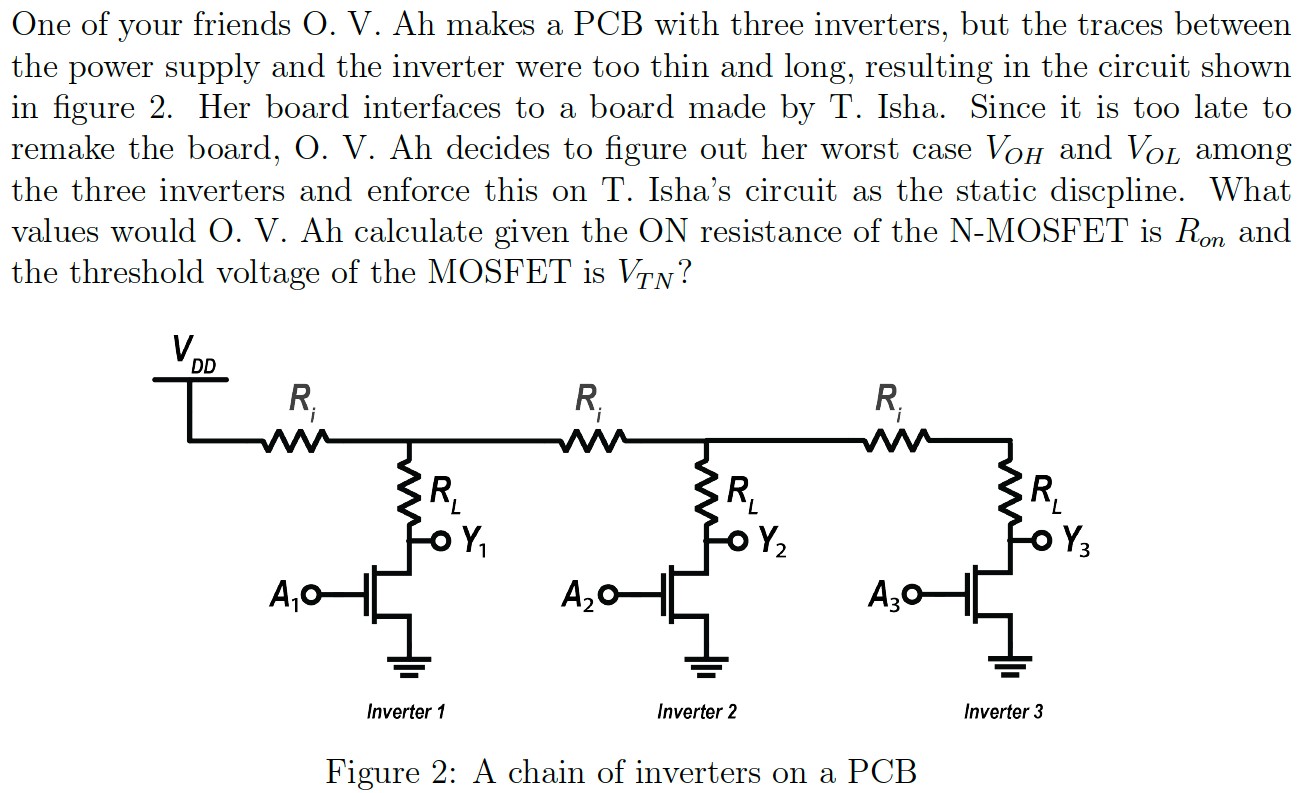

One of your friends O. V. Ah makes a PCB with three inverters, but the traces between the power supply and the inverter were too thin and long, resulting in the circuit shown in figure 2. Her board interfaces to a board made by T. Isha. Since it is too late to remake the board, O. V. Ah decides to figure out her worst case VOH and VOL among the three inverters and enforce this on T. Isha's circuit as the static discpline. What values would O. V. Ah calculate given the ON resistance of the N-MOSFET is Ron and the threshold voltage of the MOSFET is VTN ? Figure 2: A chain of inverters on a PCB
Solution
0 0

One of your friends who loves the history of science D. Amin Poor, comes across the circuit implementation of the first neural network the Perceptron using the McCulloch & Pitts neuron shown in figure 3. He knows the circuit is a universal approximator but is confused about how to make the circuit implement an NAND gate. He comes to you for help since you are an expert in circuits. Can you choose the values of R1, R2, R3, RB, VTN, and VB so that the circuit implements an NAND gate? If an exact value cannot be determined express it as a range. Assume the ON resistance of the N-MOSFET is Ron and the threshold voltage of the MOSFET is VTN. VB is a bias voltage not an input. Figure 3: A circuit approximation of the McCulloch and Pitts Neuron
Solution
0 0

The schematic of a inverter using a single MOSFET transistor is shown below: The threshold voltage of the transistor Q1 is |VT| = 1 V and channel length modulation can be neglected. (a) Identify a suitable model of the transistor for analysing the above circuit and describe the model mathematically, graphically or as an equivalent circuit. Sketch the voltage-voltage transfer characteristic, Vo - Vi, for the circuit, clearly identifying the state of the transistor based on the proposed model. (b) If the transistor is saturated where Vi < VA and not saturated where Vi > VA, derive an expression for Vo|Vi=VA in terms of the relevant circuit and transistor parameters. If kn = 100 μAV-2 and R = 100 kΩ, determine Vo|Vi=VA in terms of VDD. (c) Assuming no leakage current, calculate the VOH min of the inverter. If, instead, there is a leakage current with equivalent resistance of 3 MΩ when VGS < VT, determine the adjusted VOHmin. Calculate the power lost when Vi = VT/2 in these circumstances.
