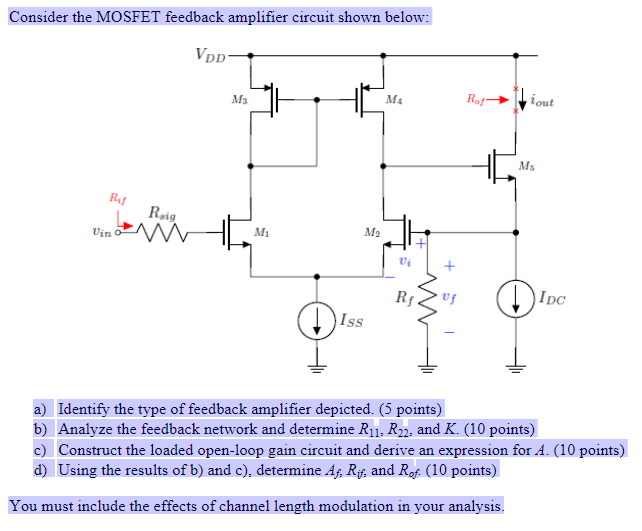

Consider the MOSFET feedback amplifier circuit shown below: a) Identify the type of feedback amplifier depicted. (5 points) b) Analyze the feedback network and determine R11, R22, and K. (10 points) c) Construct the loaded open-loop gain circuit and derive an expression for A. (10 points) d) Using the results of b) and c), determine Af, Rif, and Rof (10 points) You must include the effects of channel length modulation in your analysis.

Consider the MOSFET feedback amplifier circuit shown below: a) Identify the type of feedback amplifier depicted. (5 points) b) Analyze the feedback network and determine R11, R22, and K. (10 points) c) Construct the loaded open-loop gain circuit and derive an expression for A. (10 points) d) Using the results of b) and c), determine Af, Rif, and Rof (10 points) You must include the effects of channel length modulation in your analysis.

Image text
Consider the MOSFET feedback amplifier circuit shown below: a) Identify the type of feedback amplifier depicted. (5 points) b) Analyze the feedback network and determine R 11 , R 22 , and K . ( 10 points) c) Construct the loaded open-loop gain circuit and derive an expression for A . (10 points) d) Using the results of b ) and c), determine A f , R i f , and R o f ( 10 points)
You must include the effects of channel length modulation in your analysis.

Detailed Answer

3 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (3)
  • Correct answers (3)
  • Complete solution (3)
  • Step-by-step solution (3)
  • Fully explained (3)

Similar/Related Questions

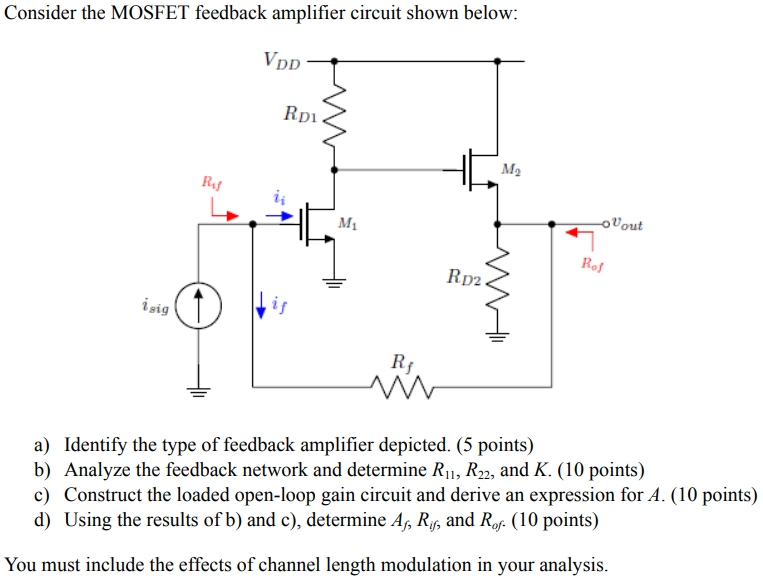

Consider the MOSFET feedback amplifier circuit shown below: a) Identify the type of feedback amplifier depicted. (5 points) b) Analyze the feedback network and determine R11, R22, and K. (10 points) c) Construct the loaded open-loop gain circuit and derive an expression for A. (10 points) d) Using the results of b ) and c), determine Af, Rif, and Rof. (10 points) You must include the effects of channel length modulation in your analysis.
Solution
0 0

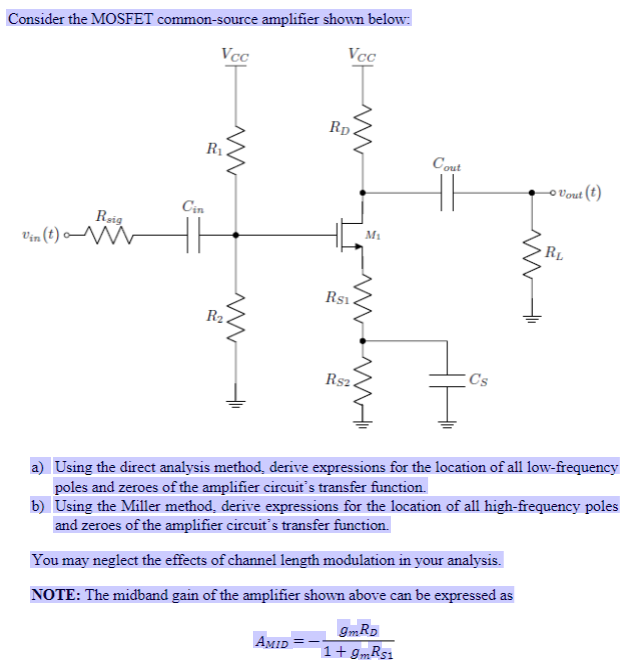

Consider the MOSFET common-source amplifier shown below: a) Using the direct analysis method, derive expressions for the location of all low-frequency poles and zeroes of the amplifier circuit's transfer function. b) Using the Miller method, derive expressions for the location of all high-frequency poles and zeroes of the amplifier circuit's transfer function. You may neglect the effects of channel length modulation in your analysis. NOTE: The midband gain of the amplifier shown above can be expressed as AMID = −gmRD 1+gmRS1
