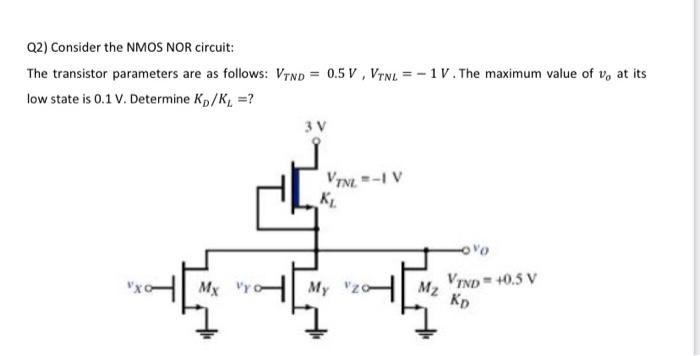

Consider the NMOS NOR circuit: The transistor parameters are as follows: VTND = 0.5 V, VTNL = -1 V. The maximum value of vo at its low state is 0.1 V. Determine KD/KL = ?

Consider the NMOS NOR circuit: The transistor parameters are as follows: VTND = 0.5 V, VTNL = -1 V. The maximum value of vo at its low state is 0.1 V. Determine KD/KL = ?

Image text
Consider the NMOS NOR circuit: The transistor parameters are as follows: VTND = 0.5 V, VTNL = -1 V. The maximum value of vo at its low state is 0.1 V. Determine KD/KL = ?

Detailed Answer
