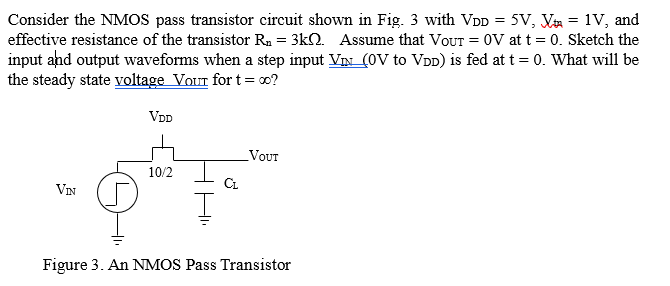

Consider the NMOS pass transistor circuit shown in Fig. 3 with VDD = 5 V, Vtn = 1 V, and effective resistance of the transistor Rn = 3 kΩ. Assume that Vour = 0 V at t = 0. Sketch the input and output waveforms when a step input VIN (0 V to VDD) is fed at t = 0. What will be the steady state voltage Vour for t = ∞ ? Figure 3. An NMOS Pass Transistor

Consider the NMOS pass transistor circuit shown in Fig. 3 with VDD = 5 V, Vtn = 1 V, and effective resistance of the transistor Rn = 3 kΩ. Assume that Vour = 0 V at t = 0. Sketch the input and output waveforms when a step input VIN (0 V to VDD) is fed at t = 0. What will be the steady state voltage Vour for t = ∞ ? Figure 3. An NMOS Pass Transistor

Image text
Consider the NMOS pass transistor circuit shown in Fig. 3 with V D D = 5 V , X tp = 1 V , and effective resistance of the transistor R n = 3 k Ω . Assume that Vour = 0 V at t = 0 . Sketch the input and output waveforms when a step input V I N ( 0 V to V D D ) is fed at t = 0 . What will be the steady state voltage Vour for t = ∞ ? Figure 3. An NMOS Pass Transistor

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

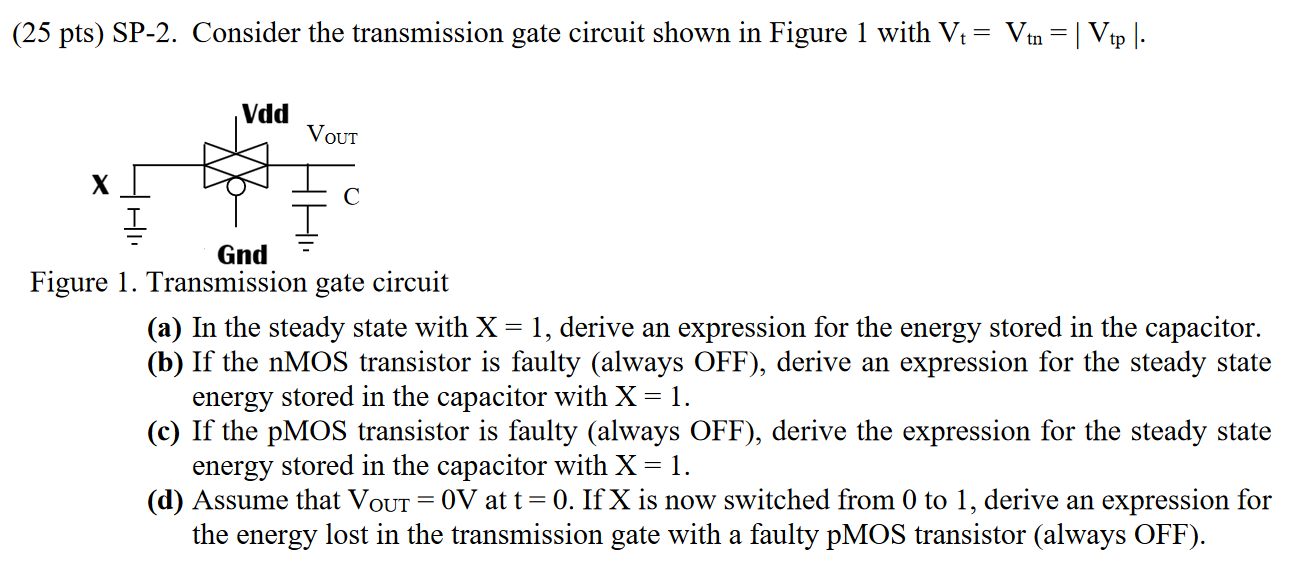

(25 pts) SP-2. Consider the transmission gate circuit shown in Figure 1 with Vt = Vtn = |Vtp|. Figure 1. Transmission gate circuit (a) In the steady state with X = 1, derive an expression for the energy stored in the capacitor. (b) If the nMOS transistor is faulty (always OFF), derive an expression for the steady state energy stored in the capacitor with X = 1. (c) If the pMOS transistor is faulty (always OFF), derive the expression for the steady state energy stored in the capacitor with X = 1. (d) Assume that VOUT = 0 V at t = 0. If X is now switched from 0 to 1, derive an expression for the energy lost in the transmission gate with a faulty pMOS transistor (always OFF).
