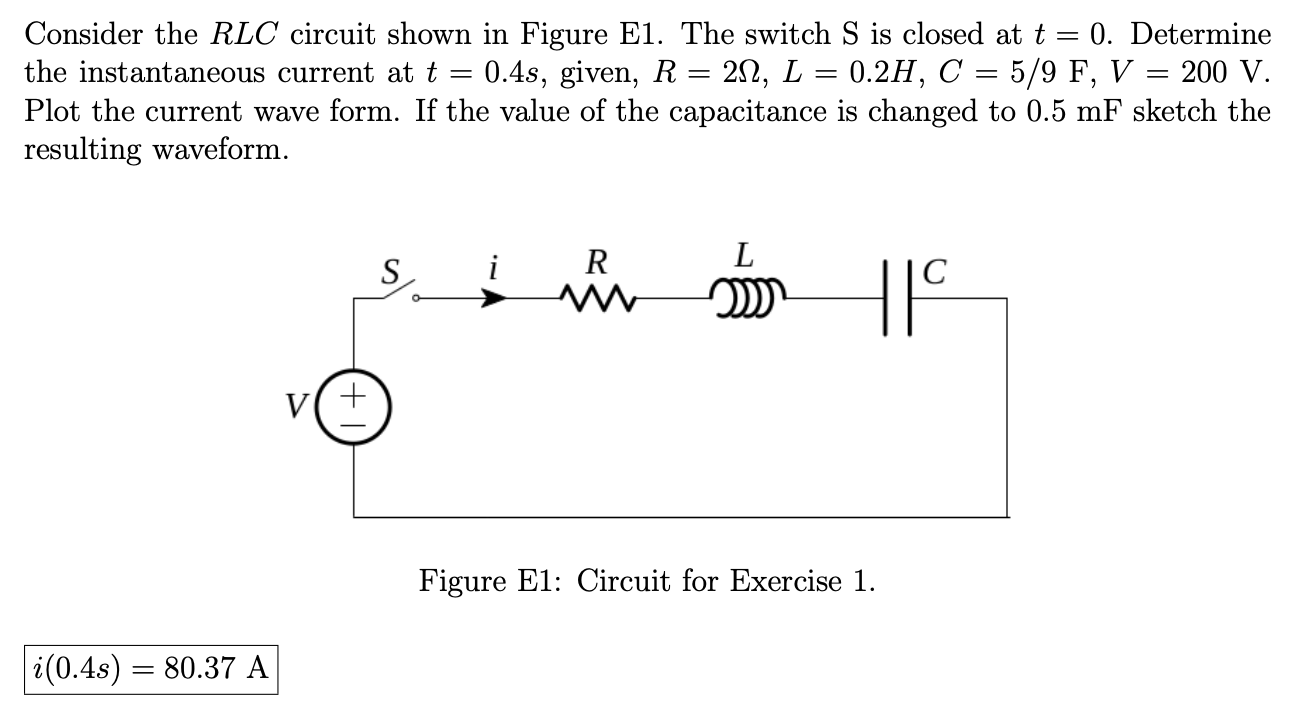

Consider the RLC circuit shown in Figure E1. The switch S is closed at t = 0. Determine the instantaneous current at t = 0.4 s, given, R = 2 Ω, L = 0.2 H, C = 5/9 F, V = 200 V. Plot the current wave form. If the value of the capacitance is changed to 0.5 mF sketch the resulting waveform. Figure E1: Circuit for Exercise 1. i(0.4 s) = 80.37 A

Consider the RLC circuit shown in Figure E1. The switch S is closed at t = 0. Determine the instantaneous current at t = 0.4 s, given, R = 2 Ω, L = 0.2 H, C = 5/9 F, V = 200 V. Plot the current wave form. If the value of the capacitance is changed to 0.5 mF sketch the resulting waveform. Figure E1: Circuit for Exercise 1. i(0.4 s) = 80.37 A

Image text
Consider the R L C circuit shown in Figure E1. The switch S is closed at t = 0 . Determine the instantaneous current at t = 0.4 s , given, R = 2 Ω , L = 0.2 H , C = 5 / 9 F , V = 200 V . Plot the current wave form. If the value of the capacitance is changed to 0.5 m F sketch the resulting waveform. Figure E1: Circuit for Exercise 1.
i ( 0.4 s ) = 80.37 A
