Consider this PMOS circuit: K = 0.2 mA/V2 Vt = -2.0 V For this problem, we know that the drain voltage VD = 4.0 V (with respect to ground), but we do not know the value of the voltage source VGG. Let's attempt to find this value VGG!

Consider this PMOS circuit: K = 0.2 mA/V2 Vt = -2.0 V For this problem, we know that the drain voltage VD = 4.0 V (with respect to ground), but we do not know the value of the voltage source VGG. Let's attempt to find this value VGG!

Image text

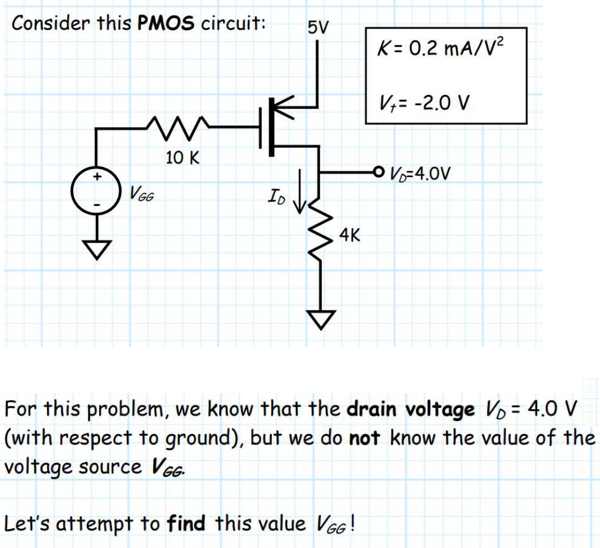

Consider this PMOS circuit:
For this problem, we know that the drain voltage V D = 4.0 V (with respect to ground), but we do not know the value of the voltage source V G G .
Let's attempt to find this value V G G !

Detailed Answer

0 0
