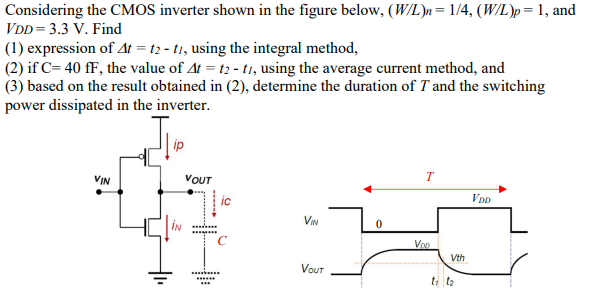

Considering the CMOS inverter shown in the figure below, (W/L)n = 1/4, (W/L)p = 1, and VDD = 3.3 V. Find (1) expression of Δt = t2−t1, using the integral method, (2) if C = 40 fF, the value of Δt = t2−t1, using the average current method, and (3) based on the result obtained in (2), determine the duration of T and the switching power dissipated in the inverter.
