D 8.42 The circuit in Fig. 8.15(a) is fabricated in the 0.18-μm CMOS process whose parameters are specified in Table K.1 (Appendix K). VDD = 1.8 V. Design the circuit to obtain a voltage gain Av = -20 V/V. Use devices of equal length L operating at I = 100 μA and |Vov| = 0.2 V. Determine the required values of VG, L, (W/L)1, and (W/L)2.

D 8.42 The circuit in Fig. 8.15(a) is fabricated in the 0.18-μm CMOS process whose parameters are specified in Table K.1 (Appendix K). VDD = 1.8 V. Design the circuit to obtain a voltage gain Av = -20 V/V. Use devices of equal length L operating at I = 100 μA and |Vov| = 0.2 V. Determine the required values of VG, L, (W/L)1, and (W/L)2.

Image text
D 8.42 The circuit in Fig. 8.15(a) is fabricated in the 0.18-μm CMOS process whose parameters are specified in Table K.1 (Appendix K). VDD = 1.8 V. Design the circuit to obtain a voltage gain Av = -20 V/V. Use devices of equal length L operating at I = 100 μA and |Vov| = 0.2 V. Determine the required values of VG, L, (W/L)1, and (W/L)2.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

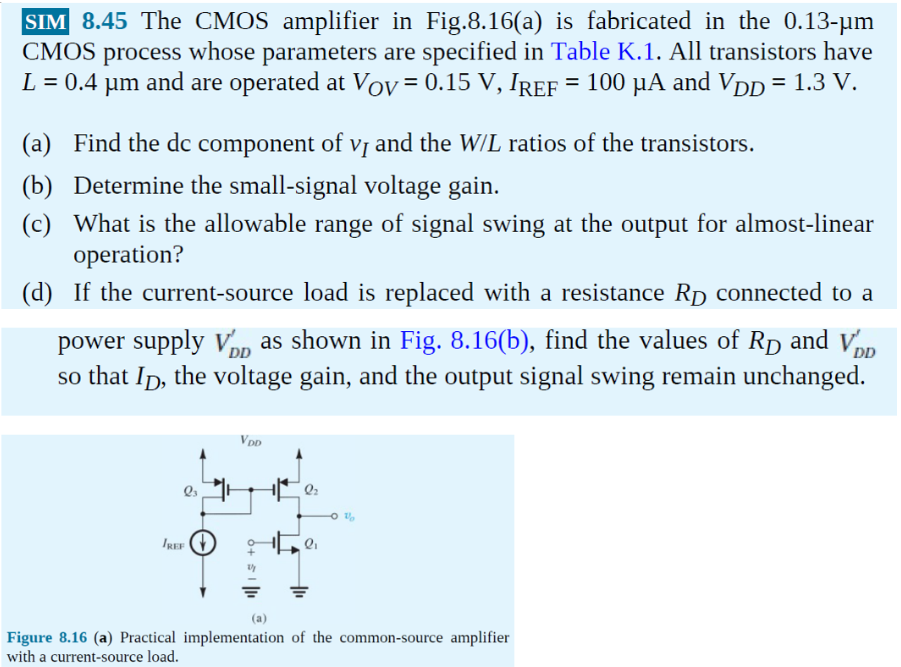

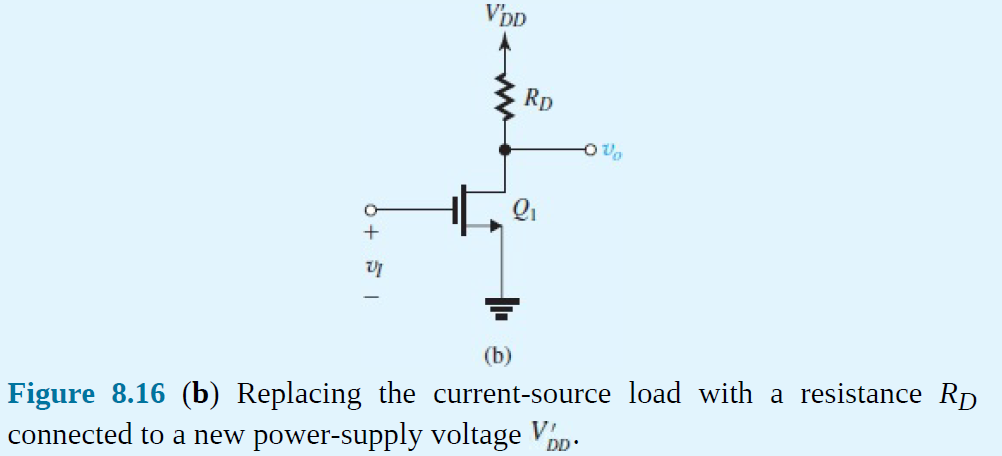

The CMOS amplifier in Fig.8.16(a) is fabricated in the 0.13-um CMOS process whose parameters are specified in Table K.1. All transistors have L = 0.4 um and are operated at Vov = 0.15 V, IREF = 100 uA and VDD = 1.3 V. (a) Find the dc component of vi and the W/L ratios of the transistors. (b) Determine the small-signal voltage gain. (c) What is the allowable range of signal swing at the output for almost-linear operation? (d) If the current-source load is replaced with a resistance Rd connected to a power supply V

The CMOS amplifier in Fig.8.16(a) is fabricated in the 0.13-um CMOS process whose parameters are specified in Table K.1. All transistors have L = 0.4 um and are operated at Vov = 0.15 V, IREF = 100 uA and VDD = 1.3 V. (a) Find the dc component of vi and the W/L ratios of the transistors. (b) Determine the small-signal voltage gain. (c) What is the allowable range of signal swing at the output for almost-linear operation? (d) If the current-source load is replaced with a resistance Rd connected to a power supply V
Solution
8 0

The CMOS amplifier in Fig 1 is fabricated in the 0.13-um CMOS process, whose parameters are specified in Table K.1 (Appendix K) in the textbook. All transistors have L = 0.4-um and are operated at Vov = 0.15 V,IREF = 100 uA and VDD = 1.3 V. (a) Find the DC component of vt and the W/L ratios of the transistors. (b) (b) Determine the small-signal voltage gain. (c) What is the allowable range of signal swing at the output for almost-linear operation? (d) If the current-source load is replaced with a resistance RD connected to a power supply V

The CMOS amplifier in Fig 1 is fabricated in the 0.13-um CMOS process, whose parameters are specified in Table K.1 (Appendix K) in the textbook. All transistors have L = 0.4-um and are operated at Vov = 0.15 V,IREF = 100 uA and VDD = 1.3 V. (a) Find the DC component of vt and the W/L ratios of the transistors. (b) (b) Determine the small-signal voltage gain. (c) What is the allowable range of signal swing at the output for almost-linear operation? (d) If the current-source load is replaced with a resistance RD connected to a power supply V
Solution
1 0

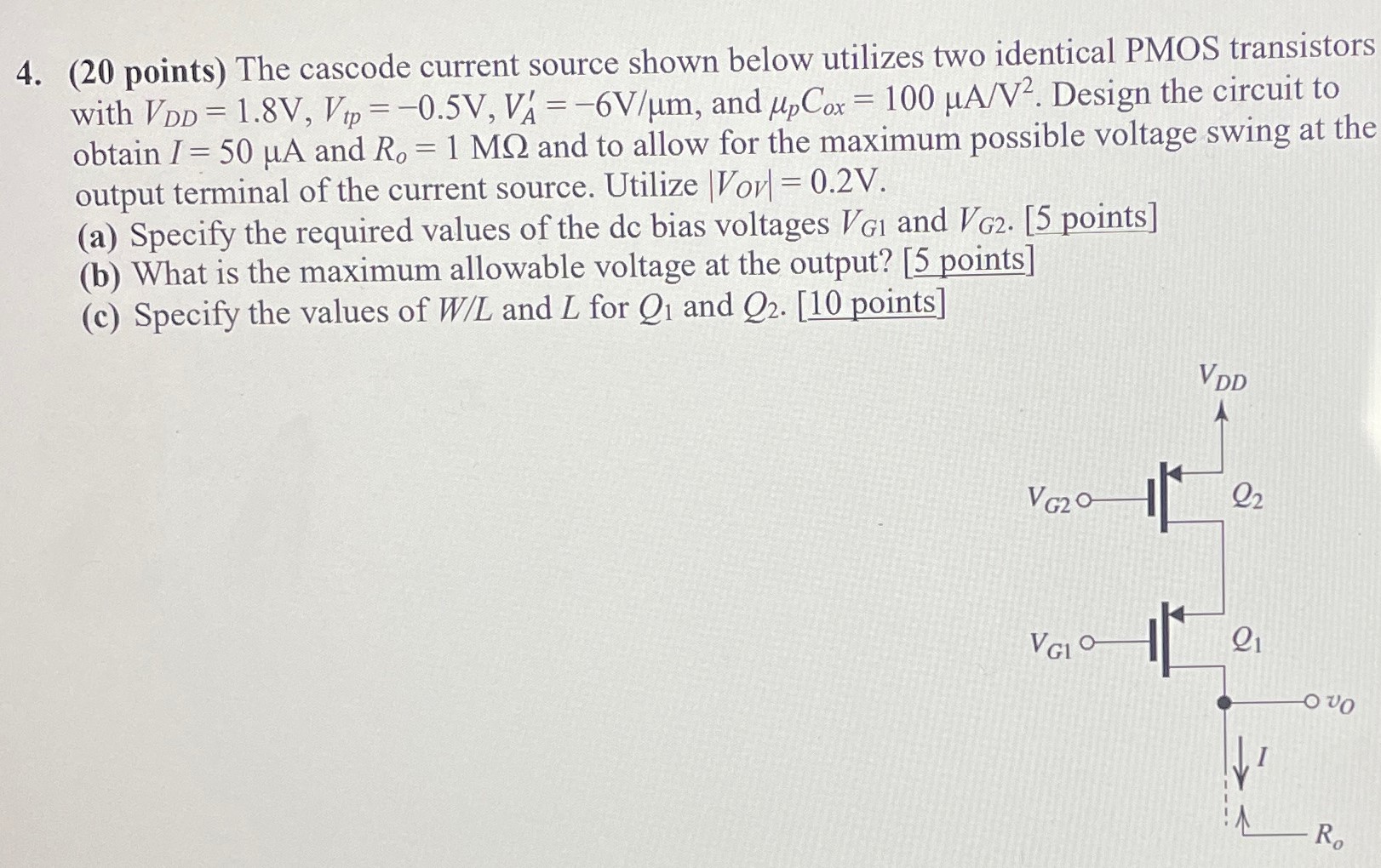

(20 points) The cascode current source shown below utilizes two identical PMOS transistors with VDD = 1.8 V, Vtp = −0.5 V, VA′ = −6 V/μm, and μpCox = 100 μA/V2. Design the circuit to obtain I = 50 μA and Ro = 1 MΩ and to allow for the maximum possible voltage swing at the output terminal of the current source. Utilize |Vov| = 0.2 V. (a) Specify the required values of the dc bias voltages VG1 and VG2. [ 5 points] (b) What is the maximum allowable voltage at the output? [5 points] (c) Specify the values of W/L and L for Q1 and Q2. [10 points ]
