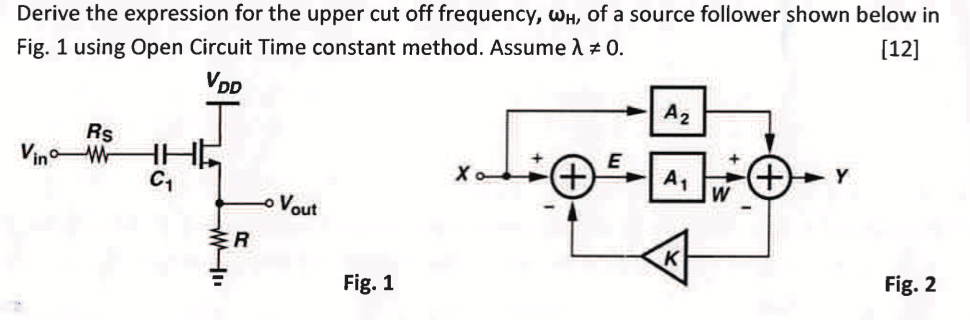

Derive the expression for the upper cut off frequency, ωH, of a source follower shown below in Fig. 1 using Open Circuit Time constant method. Assume λ ≠ 0. [12] Fig. 1 Fig. 2
