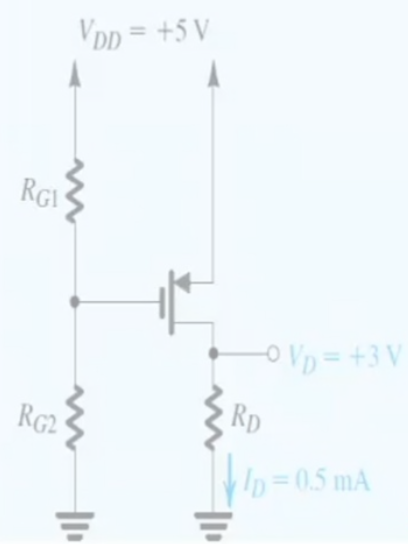

Design the circuit below so that the transistor operates in saturation with ID = 0.5 mA and VD = +3 V. Let transistor has Vt = −1 V and KP′(W/L) = 1 mA/V2, RG2 = 3 MΩ. What is the largest RD can have while maintaining saturation region operation?

Design the circuit below so that the transistor operates in saturation with ID = 0.5 mA and VD = +3 V. Let transistor has Vt = −1 V and KP′(W/L) = 1 mA/V2, RG2 = 3 MΩ. What is the largest RD can have while maintaining saturation region operation?

Image text
Design the circuit below so that the transistor operates in saturation with I D = 0.5 m A and V D = + 3 V . Let transistor has V t = − 1 V and K P ′ ( w L ) = 1 m A / V 2 , R G 2 = 3 M Ω . What is the largest R D can have while maintaining saturation region operation?

Detailed Answer
