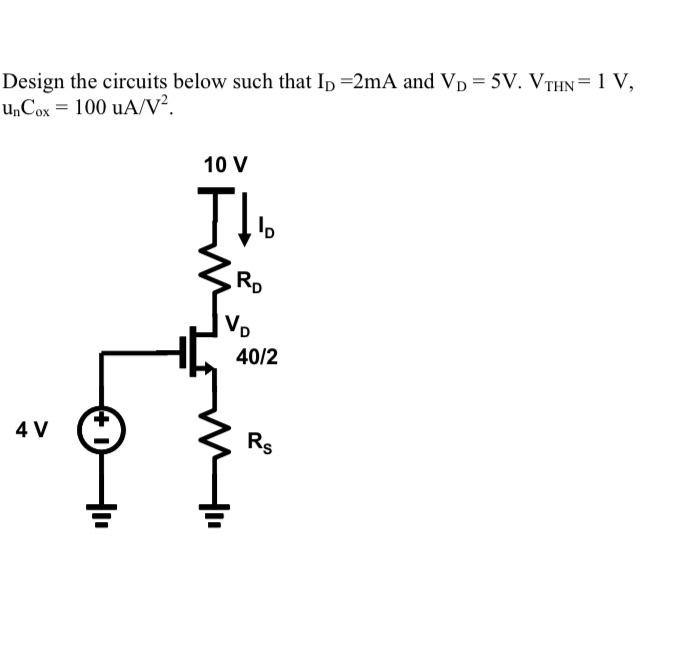

Design the circuits below such that ID =2mA and VD = 5V. VTHN = 1 V, unCox = 100 uA/V2.

Design the circuits below such that ID =2mA and VD = 5V. VTHN = 1 V, unCox = 100 uA/V2.

Image text
Design the circuits below such that ID =2mA and VD = 5V. VTHN = 1 V, unCox = 100 uA/V2.

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Cascode Stage. Design a Cascode amplifier shown in figure below to achieve a gain of 1600. Assume VDD = 1 V, Vth = 0.3 V, λn = 0.2 V−1, γ = 0, μnCox = 100 μA/V2, I1 = 1 mA, gmro ≫ 1. a) Find bias point (VGS−Vth of transistors) to achieve the target gain such that we achieve maximum swing at Vout. b) Find W/L for each transistor. c) Calculate optimal Vb and VIN DC bias to maximize output swing. What is this maximum/minimum voltage levels at the output? What is the maximum swing? d) Notice you must generate a specific Vb externally to maximize the swing. If a lazy designer decides to connect Vb to VDD instead, what would be the swing in this case? e) To realize the current source load, we will use a PMOS active load. For PMOS, use the same parameters with λp = 0.2 V−1, μpCox = 50 μA/V2. Assume the bias current will remain at 1mA, find the new gain value. What would be the W/L for PMOS if we want to have a VOD(VGS−Vth) of 0.1V for this device. f) Repeat part (e) for a PMOS load with 2L gate length. g) It seems like making the PMOS load very large (large W) is beneficial to reduce VOD and consequently improving the voltage swing. What do you think is the drawback?
Solution
0 0

All the MOSFETs for the circuits in Question 6 are from a 180 nm CMOS process for which the following parameters are given: μnCox = 100 μA/V2, μpCox = 40 μA/V2, Vtn = 1 V, Vtp = −1 V, λ = 0.01 V−1. Fig. for Question 6(a) Fig. for Question 6(c) (a) For the circuit shown in Fig. for Question 6(a), W = 10 μm, L = 1 μm. Find the resistance value R such that the voltage VD = 3 V. (b) Since resistance takes a lot of area in IC, you are asked to implement the circuit using an additional MOS transistor Q2. Show your circuit and find the W/L ratio of Q2.
Solution
0 0

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.

Figure P7.33 shows a discrete-circuit amplifier. The input signal vsig is coupled to the gate through a very large capacitor (shown as infinite). The transistor source is connected to ground at signal frequencies via a very large capacitor (shown as infinite). The output voltage signal that develops at the drain is coupled to a load resistance via a very large capacitor (shown as infinite). All capacitors behave as short circuits for signals and as open circuits for dc. (a) If the transistor has Vt = 1 V, and kn = 4 mA/V2 , verify that the bias circuit establishes VGS = 1.5 V, ID = 0.5 mA, and VD = +7.0 V. That is, assume these values, and verify that they are consistent with the values of the circuit components and the device parameters. (b) Find gm and ro if VA = 100 V. (c) Draw a complete small-signal equivalent circuit for the amplifier, assuming all capacitors behave as short circuits at signal frequencies. (d) Find Rin, vgs/vsig, vo/vgs, and vo/vsig.
Solution
3 0
