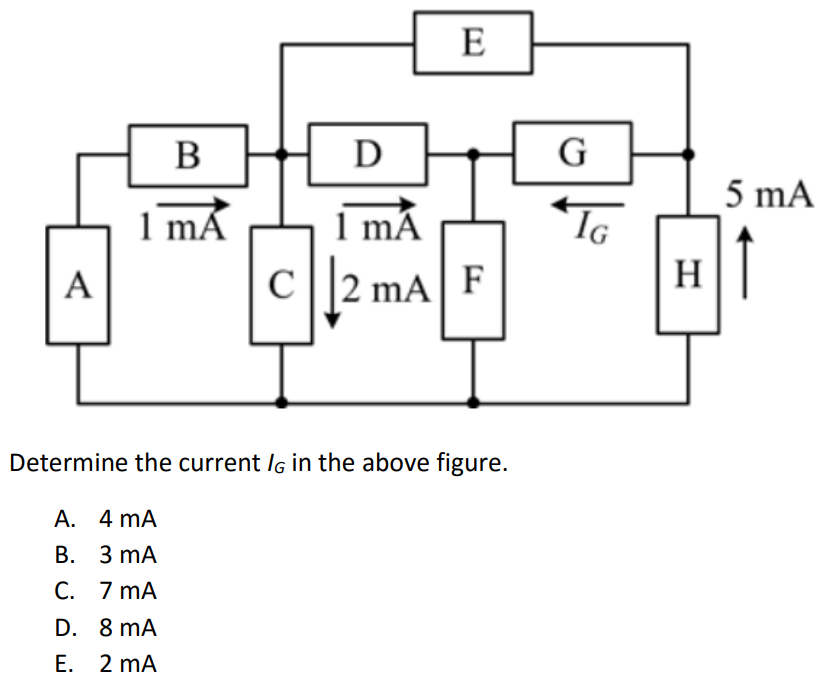

Determine the current IG in the above figure. A. 4 mA B. 3 mA C. 7 mA D. 8 mA E. 2 mA

Determine the current IG in the above figure. A. 4 mA B. 3 mA C. 7 mA D. 8 mA E. 2 mA

Image text
Determine the current IG in the above figure. A. 4 mA B. 3 mA C. 7 mA D. 8 mA E. 2 mA

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

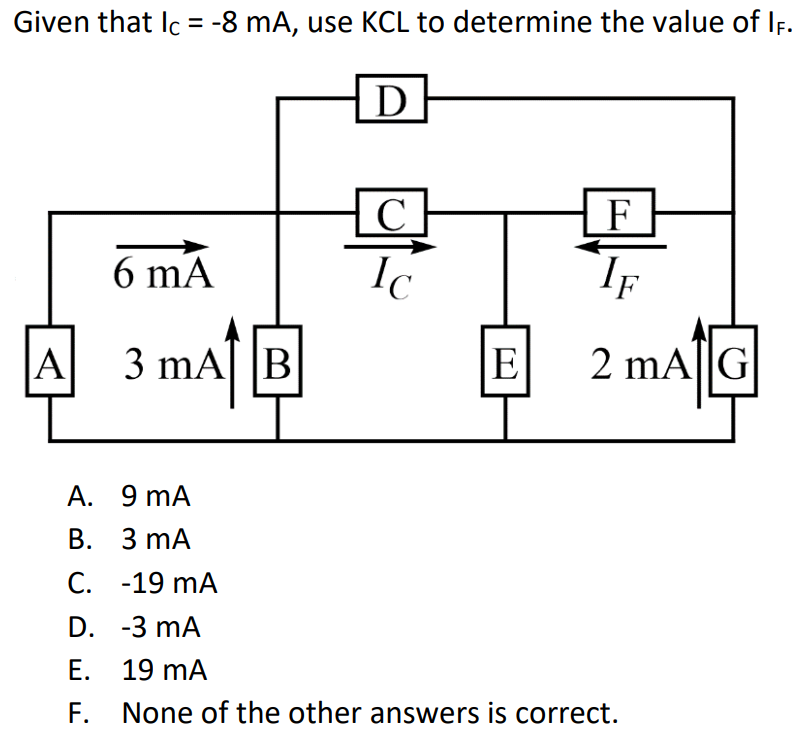

Given that IC = -8 mA, use KCL to determine the value of IF. A. 9 mA B. 3 mA C. -19 mA D. -3 mA E. 19 mA F. None of the other answers is correct.
