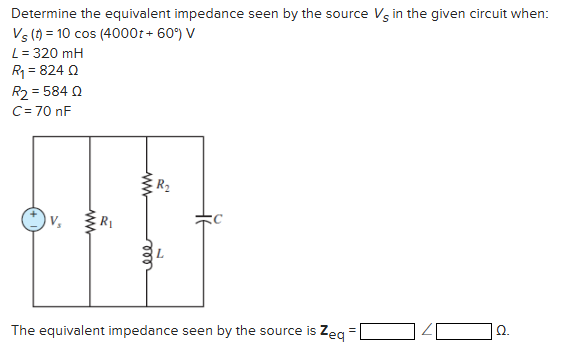

Determine the equivalent impedance seen by the source VS in the given circuit when: Vs(t) = 10 cos⁡(4000t + 60∘)V L = 320 mH R1 = 824 Ω R2 = 584 Ω C = 70 nF The equivalent impedance seen by the source is Zeq = ∠ Ω.

Determine the equivalent impedance seen by the source VS in the given circuit when: Vs(t) = 10 cos⁡(4000t + 60∘)V L = 320 mH R1 = 824 Ω R2 = 584 Ω C = 70 nF The equivalent impedance seen by the source is Zeq = ∠ Ω.

Image text
Determine the equivalent impedance seen by the source V S in the given circuit when:
V s ( t ) = 10 cos ⁡ ( 4000 t + 60 ∘ ) V L = 320 mH R 1 = 824 Ω R 2 = 584 Ω C = 70 nF
The equivalent impedance seen by the source is Z eq = ◻ ∠ ◻ Ω .

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Consider the shown circuit, where R = 500 Ω, L = 40 μH, C = 30 nF, and Vs is a sinusoidal source with a peak amplitude of 5 V. (Vs(t) = 5 cos⁡(ωt)V) Part 1: Hand Calculation a) Assume the source has a frequency of 140 kHz, calculate:the impedance Z seen by the source (expressed as a complex number and as magnitude/phase). Is the impedance capacitive or inductive? the source current Is. (Expressed as a Phasor and as a time function)the voltage Vo (Expressed as a Phasor and as a time function) b) Repeat part (a) at a frequency of 148 kHz c) Calculate the resonant frequency of the circuit (the frequency at which the reactive components cancel each other) d) find the impedance of the circuit at the resonant frequency e) Calculate the Quality factor and the 3-dB bandwidth of the circuit. Note that the resonator (LC circuit) is parallel Part 2: Simulation Draw the circuit on LTSpice a) Perform AC analysis (from 130 kHz to 170 kHz, use linear scale with 10000 points) and plot the following on a separate plot:The voltage (Vo)The current (Is)The impedance seen by the source b) From the plots verify your results in the hand calculation for parts (a) and (b) c) from the plots find the resonant frequency d) From the voltage plot, find the 3-dB bandwidth. Notes:The default Y-scale for AC analysis in LTSpice is dB, you can change it to linearTo plot the impedance, add a trace and plot the expression of V over IHomework submission is through the Moodle platformSubmit a single compressed file containing:The hand calculationsScreenshot showing the circuit and the simulation resultsThe schematic file (. asc)The netlist file (. net)

Solution
0 0

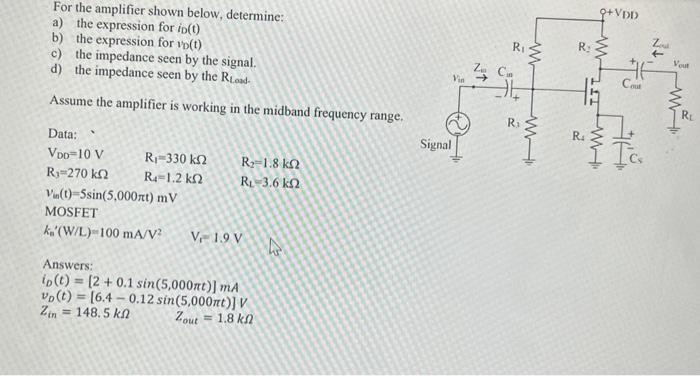

For the amplifier shown below, determine: a) the expression for iD(t) b) the expression for vD(t) c) the impedance seen by the signal. d) the impedance seen by the RLoad Assume the amplifier is working in the midband frequency range. Data: VDD = 10 V R1 = 330 kohm R2 = 1.8 kohm R3 = 270kohm R4 = 1.2kohm RL = 3.6kohm Vm(t) = 5sin(5,000*pi*t) mV MOSFET kn'(W/L) = 100 mA/V2 Vt =1.9 V
