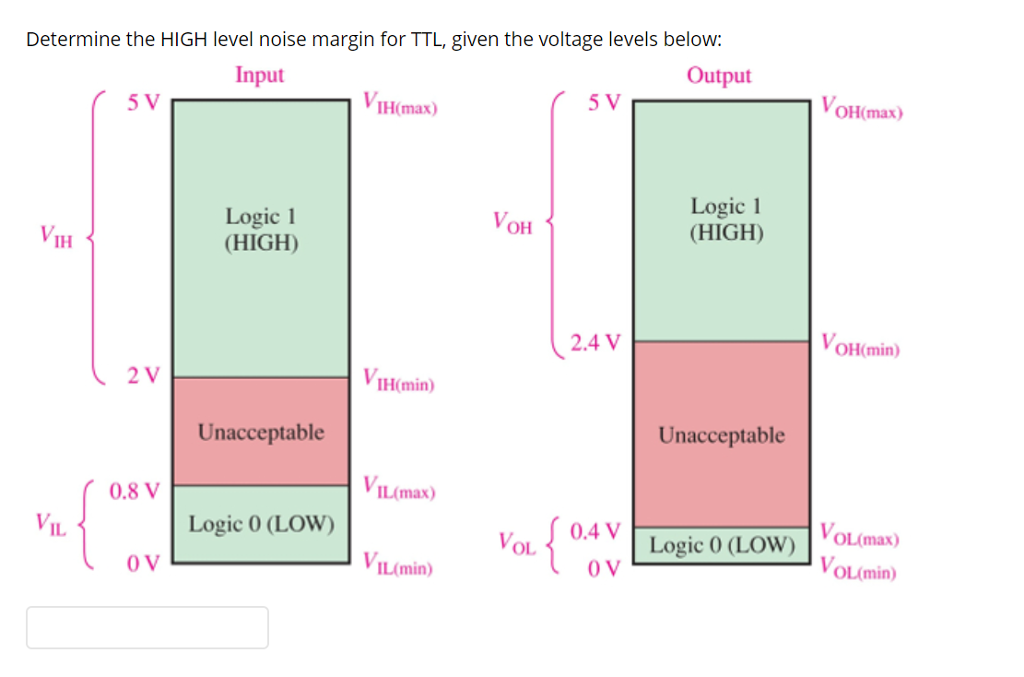

Determine the HIGH level noise margin for TTL, given the voltage levels below:

Determine the HIGH level noise margin for TTL, given the voltage levels below:

Image text
Determine the HIGH level noise margin for TTL, given the voltage levels below:

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up

Similar/Related Questions

Question 3 (25 points) A particular logic inverter has VDD = 5 V, VSS = 0 V, VH = 4.8 V, VL = 0.1 V, VOH = 4.5 V, VIH = 3.5 V, VOL = 0.5 V, VIL = 1 V, and VM = 2.3 V. For simplicity, I will represent the VTC as f(x). For example, the value of the output voltage when the input voltage is 1 V is given by f(1). At which values of input will the slope of the VTC be -1? (Select all that apply; wrong answers are penalized.) 0.5 1 3.5 4.5 None of the above Question 4 (25 points) A particular logic inverter has VDD = 5 V, VSS = 0 V, VH = 4.8 V, VL = 0.1 V, VOH = 4.5 V, VIH = 3.5 V, VOL = 0.5 V, VIL = 1 V, and VM = 2.3 V. Determine the noise margin for the low input, NML. Enter your answer in V rounded to one decimal place. Your Answer: Answer

Solution
2 0

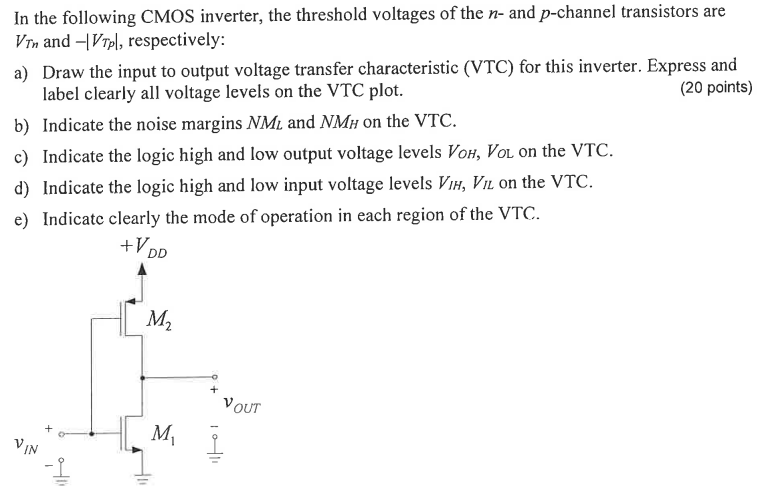

In the following CMOS inverter, the threshold voltages of the n- and p-channel transistors are VTn and −|VTp|, respectively: a) Draw the input to output voltage transfer characteristic (VTC) for this inverter. Express and label clearly all voltage levels on the VTC plot. (20 points) b) Indicate the noise margins NML and NMH on the VTC. c) Indicate the logic high and low output voltage levels VOH, VOL on the VTC. d) Indicate the logic high and low input voltage levels VIH, VIL on the VTC. e) Indicate clearly the mode of operation in each region of the VTC.
Solution
0 0

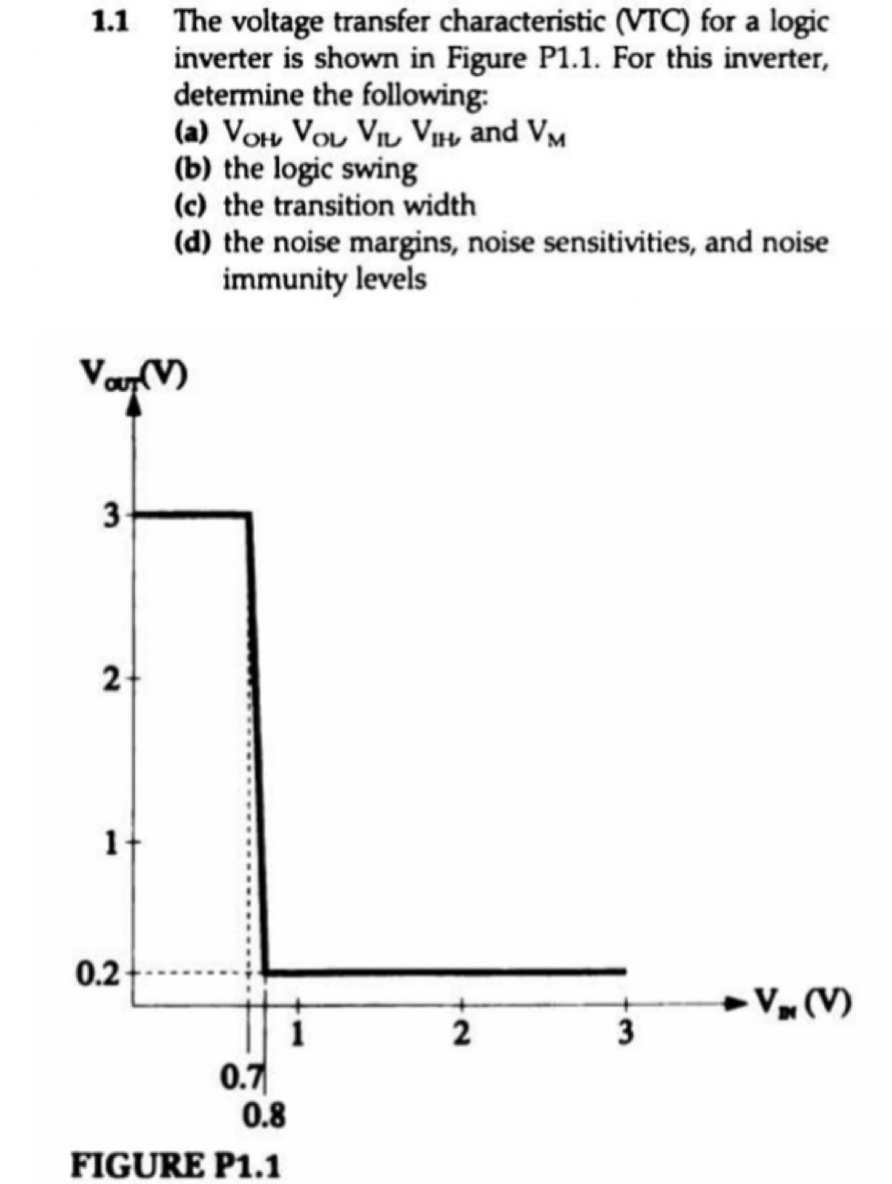

1.1 The voltage transfer characteristic (VTC) for a logic inverter is shown in Figure P1.1. For this inverter, determine the following: (a) VOH, VOL, VIL, VIH and VM (b) the logic swing (c) the transition width (d) the noise margins, noise sensitivities, and noise immunity levels
