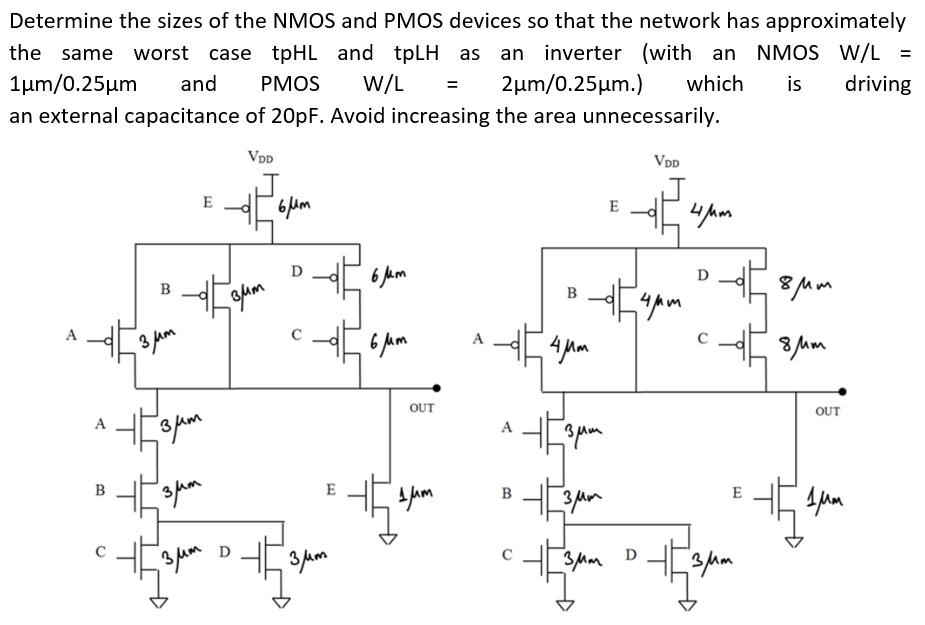

Determine the sizes of the NMOS and PMOS devices so that the network has approximately the same worst case tpHL and tpLH as an inverter (with an NMOS W/L = 1µm/0.25µm and PMOS W/L = 2µm/0.25µm.) which is driving an external capacitance of 20pF. Avoid increasing the area unnecessarily.
