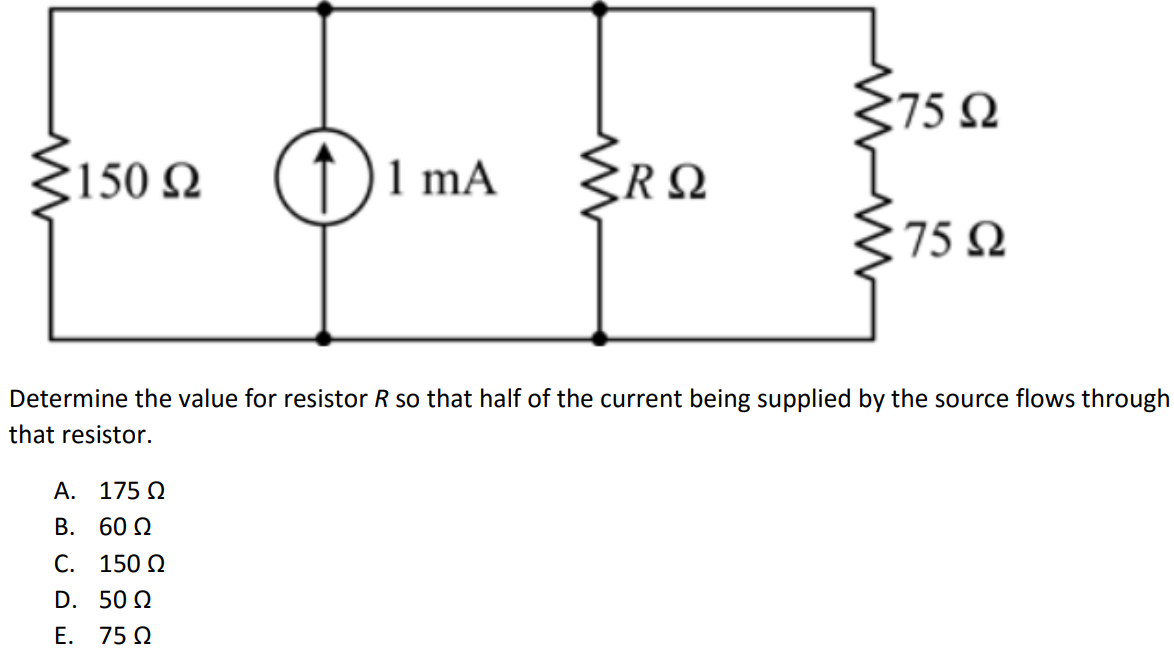

Determine the value for resistor R so that half of the current being supplied by the source flows through that resistor. A. 175 Ω B. 60 Ω C. 150 Ω D. 50 Ω E. 75 Ω

Determine the value for resistor R so that half of the current being supplied by the source flows through that resistor. A. 175 Ω B. 60 Ω C. 150 Ω D. 50 Ω E. 75 Ω

Image text
Determine the value for resistor R so that half of the current being supplied by the source flows through that resistor. A. 175 Ω B. 60 Ω C. 150 Ω D. 50 Ω E. 75 Ω

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Use source transformations to simplify the circuit in Fig. 1 to the left of load resistor R to a single current source in parallel with a single resistance, Req as shown in Fig. 2. What is the value of Req? A. 2 Ω B. 3 Ω C. 4 Ω D. 6 Ω E. 12 Ω
Solution
0 0

Figure Q2 shows a BJT differential amplifier stage that uses a tail resistor, RO, to provide a bias current, IQ. Transistor parameters are VBE(on) = 0.7 V, β = 100, and VA = ∞. Also, Vcc = 15 V, −VEE = −15 V, RO = 56 kΩ, and RC = 15 kΩ. Figure Q2: Differential Amplifier (a) To calculate the transistor Q-points, what are the values you would assume for vB1 and vB2 ? (b) Determine the bias currents, IC1 and IC2, of the amplifier. (c) For a single-sided output, determine the differential-mode voltage gain (Ad), the commonmode voltage gain (Acm), the differential input impedance (Rid), the common-mode input impedance (Ricm), and the common-mode rejection ratio (CMRR) in dB for the differential amplifier. Assume a signal source resistance of 50 Ω on each input. (d) Will changing RC affect the amplifier CMRR? (e) Suggest two changes to this amplifier each of which would allow the CMRR to be increased. For each, give a reason why the change would have the desired effect.

Solution
0 0

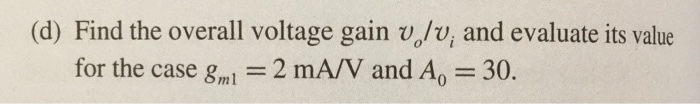

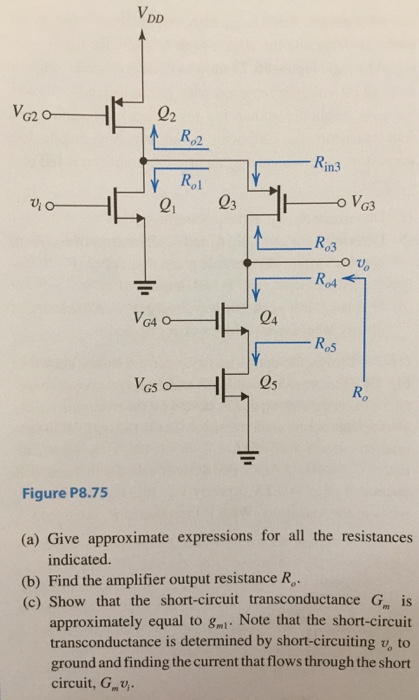

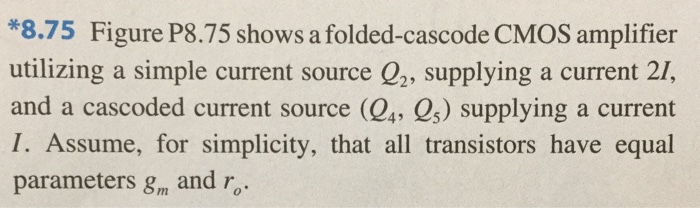

8.75 Figure P8.75 shows a folded-cascode CMOS amplifier utilizing a simple current source Q2, supplying a current 2I, and a cascaded current-source (Q4, Q5) supplying a current I. Assume, for simplicity, that all transistors have equal parameters, gm and ro. (50pt) (a) Give approximate expressions for all the resistances indicated (b) Find the amplifier output resistance Ro. (5pt) (c) Show that the short-circuit transconductance Gm is approximately equal to gm1. Note that the short-circuit transconductance determined by short-circuiting vo to ground and finding the current that flows through the short circuit, Gmvi (5pt) (d) Find the overall voltage gain vo/vi and evaluate its value for the case gm1 = 2 mA/V and intrinsic gain, A0 = 30.

8.75 Figure P8.75 shows a folded-cascode CMOS amplifier utilizing a simple current source Q2, supplying a current 2I, and a cascaded current-source (Q4, Q5) supplying a current I. Assume, for simplicity, that all transistors have equal parameters, gm and ro. (50pt) (a) Give approximate expressions for all the resistances indicated (b) Find the amplifier output resistance Ro. (5pt) (c) Show that the short-circuit transconductance Gm is approximately equal to gm1. Note that the short-circuit transconductance determined by short-circuiting vo to ground and finding the current that flows through the short circuit, Gmvi (5pt) (d) Find the overall voltage gain vo/vi and evaluate its value for the case gm1 = 2 mA/V and intrinsic gain, A0 = 30.

8.75 Figure P8.75 shows a folded-cascode CMOS amplifier utilizing a simple current source Q2, supplying a current 2I, and a cascaded current-source (Q4, Q5) supplying a current I. Assume, for simplicity, that all transistors have equal parameters, gm and ro. (50pt) (a) Give approximate expressions for all the resistances indicated (b) Find the amplifier output resistance Ro. (5pt) (c) Show that the short-circuit transconductance Gm is approximately equal to gm1. Note that the short-circuit transconductance determined by short-circuiting vo to ground and finding the current that flows through the short circuit, Gmvi (5pt) (d) Find the overall voltage gain vo/vi and evaluate its value for the case gm1 = 2 mA/V and intrinsic gain, A0 = 30.
Solution
1 0
