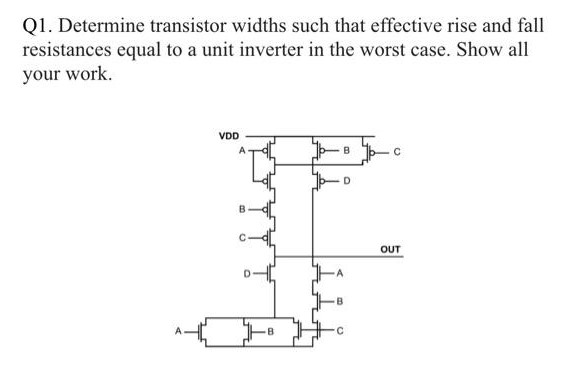

Determine transistor widths such that effective rise and fall resistances equal to a unit inverter in the worst case.

Determine transistor widths such that effective rise and fall resistances equal to a unit inverter in the worst case.

Image text
Determine transistor widths such that effective rise and fall resistances equal to a unit inverter in the worst case.

Detailed Answer

1 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (1)

Similar/Related Questions

Draw the CMOS transistor schematic for OAI22. Find width for the transistors such that it has roughly equal rise and fall times and has a worst-case pull-down resistance approximately equal to the effective channel resistance of a unit nMOS. b) Consider the Boolean equation for your gate. Find a set of inputs b, c, and d such that y = a(bar).
Solution
1 0

Let's design CMOS logistic gate F(A, B, C, D) = A+(B∙C)+D For PMOS transistors and NMOS transistors of the same size, consider a fabrication process that is four times the resistance of the PMOS transistor. Assume that all diffusion areas have no sharing. Unit inverter refers to a minimum-sized inverter that makes rise resistance (also called pullup resistance) and fall resistance (also called pulldown resistance) equal by sizing the CMOS inverter shown in the following figure with PMOS:NMOS = 4:1. (a) Draw the transistor-level schematic of CMOS logic gate F consisting of PMOS and NMOS. (b) In the worst case scenario, size the PMOS and NMOS transistors of CMOS logic gate F to have the same rise and fall resistance as unit inverter. (c) Find the logical effect gA and intrinsic delay p of CMOS logic gate F with respect to Input A.
Solution
0 0

(b) For the pass-transistor circuits shown below, answer the following questions 1 - 4. Assume VDD, GND as power supplies and |Vtp| and Vtn as the threshold voltages of pMOS and nMOS respectively. In the above figure, the output voltage for the pass-transistor circuit in (a) is In the above figure, the output voltage for the pass-transistor circuit in (b) is In the above figure, the output voltage for the pass-transistor circuit in (c) is In the above figure, the output voltage for the pass-transistor circuit in (d) is A 2-input NOR gate is designed to achieve the effective rise and fall time of a unit inverter. What is the value of k for the pMOS transistors? What is the value of k for the nMOS transistor in the 2 -input NOR gate in the above problem?
