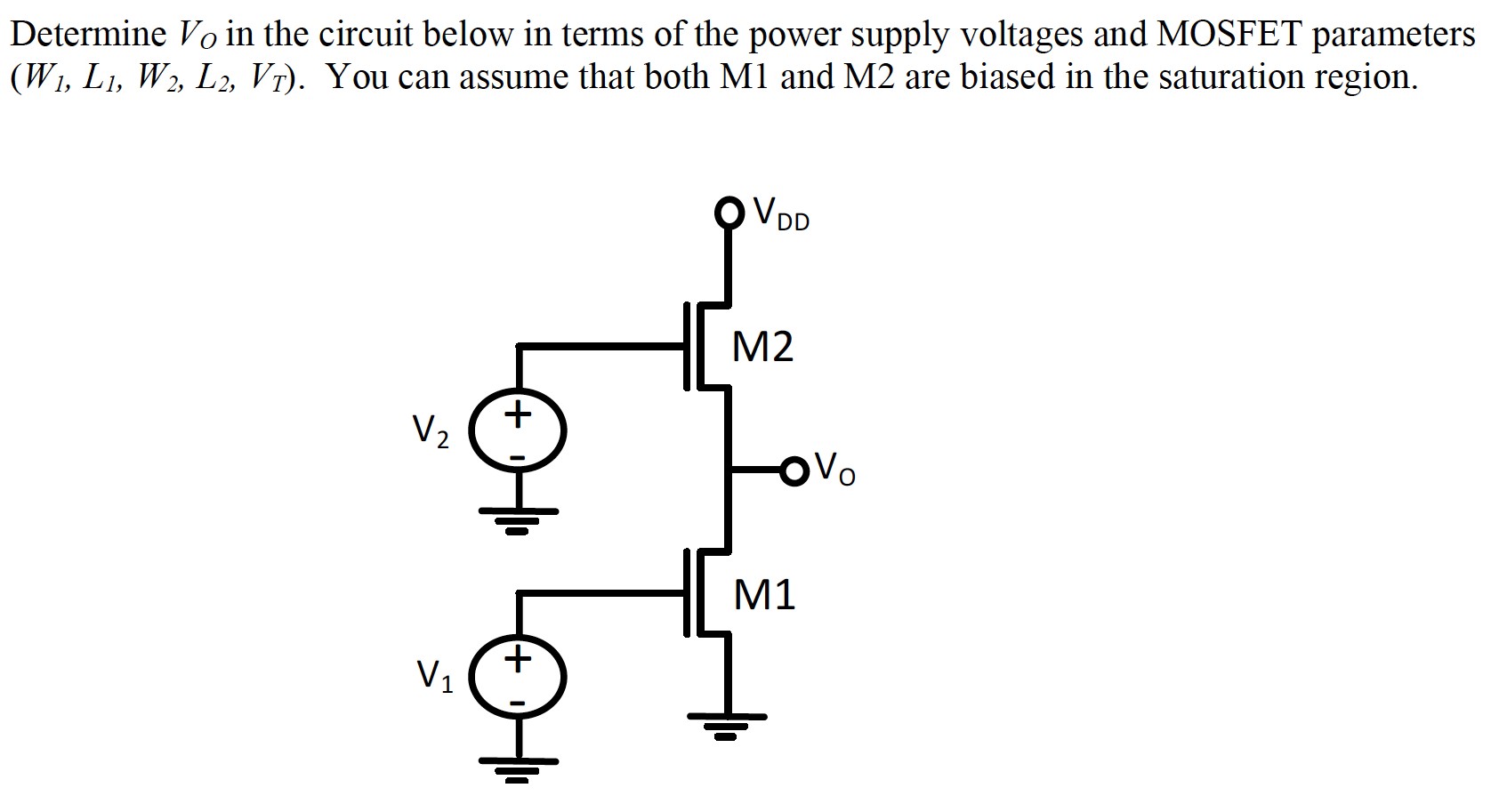

Determine VO in the circuit below in terms of the power supply voltages and MOSFET parameters (W1, L1, W2, L2, VT). You can assume that both M1 and M2 are biased in the saturation region.

Determine VO in the circuit below in terms of the power supply voltages and MOSFET parameters (W1, L1, W2, L2, VT). You can assume that both M1 and M2 are biased in the saturation region.

Image text
Determine V O in the circuit below in terms of the power supply voltages and MOSFET parameters ( W 1 , L 1 , W 2 , L 2 , V T ). You can assume that both M 1 and M 2 are biased in the saturation region.

Detailed Answer
