Determine which of the following sinusoids are periodic and compute their fundamental period. (a) cos0.01πn (b) cos(π 30n/105) (c) cos3πn (d) sin3n (e) sin(π 62n/10)

Determine which of the following sinusoids are periodic and compute their fundamental period. (a) cos0.01πn (b) cos(π 30n/105) (c) cos3πn (d) sin3n (e) sin(π 62n/10)

Image text

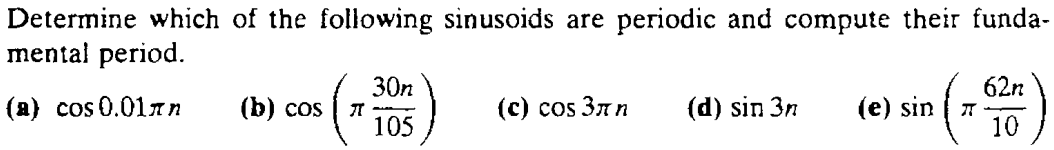

Determine which of the following sinusoids are periodic and compute their fundamental period.
(a) cos ⁡ 0.01 π n
(b) cos ⁡ ( π 30 n 105 )
(c) cos ⁡ 3 π n
(d) sin ⁡ 3 n
(e) sin ⁡ ( π 62 n 10 )

Detailed Answer

2 0

Please enter your email here. You will get email when this question is answered by our tutor.

Answer
Doubtrix Logo

This Problem has been solved!

You'll get a detailed, step-by-step and expert verified solution.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Login Sign Up
  • Student Reviews:
  • (2)
  • Correct answers (2)
  • Complete solution (2)
  • Step-by-step solution (2)
  • Fully explained (2)

Similar/Related Questions

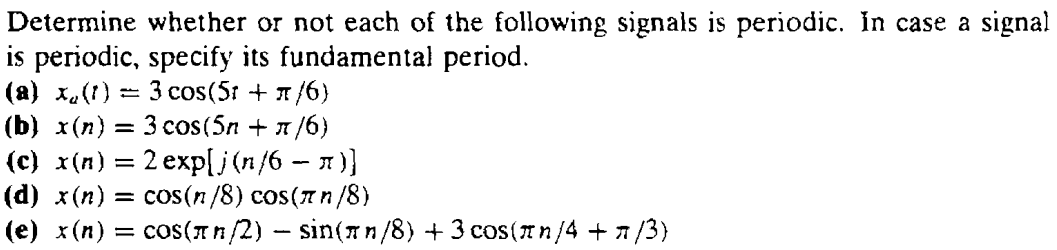

Determine whether or not each of the following signals is periodic. In case a signal is periodic, specify its fundamental period. (a) xa(t) = 3 cos(5t + π/6) (b) x(n) = 3 cos(5n + π/6 ) (c) x(n) = 2exp[j(n/6 − π)] (d) x(n) = cos(n/8) cos(π n/8) (e) x(n) = cos(π n/2) − sin(π n/8) + 3cos(π n/4 + π/3)

Solution
2 0

Q1. Consider the CMOS inverter of which the transistors have the following parameters: μnCox = 4μpCox = 160 μA/V2, ∣γ| = 0.5 V1/2, 2Φf = 0.5 V, λ = 0.001 V−1, Vtno = 0.6 V, Vtpo = −0.8 V, (W/L)n = 1 and (W/L)p = 4. The supply voltage VDD = 3.3 V. The capacitive load at the output node is 20 pF. The input voltage Vin is expected to be a perfect periodic square wave with full swing (low level : 0 V, high level: VDD). (a) Calculate tl, the time required for the output voltage Vout to change from 0 V to the threshold voltage of the inverter, using the average-current method. (b) Write the expression of calculation of t2, the time required for the output voltage Vout to change from 2.9 V to the 0.4 V, using the analytical method (integral). Then calculate t2 using the average-current method. (c) Determine the maximum frequency of the periodic square wave input so that the output signal will have a full swing in each cycle. (d) Calculate the peak value of in, the NMOS transistor current, during the transition, and its average value over a clock cycle T. (The average value here is not the same as the average-current in the "average-current method" for delay estimation) (e) If the capacitive load is now changed to be 250 pF, what can be done to make tl and t2 unchanged?
Solution
0 0

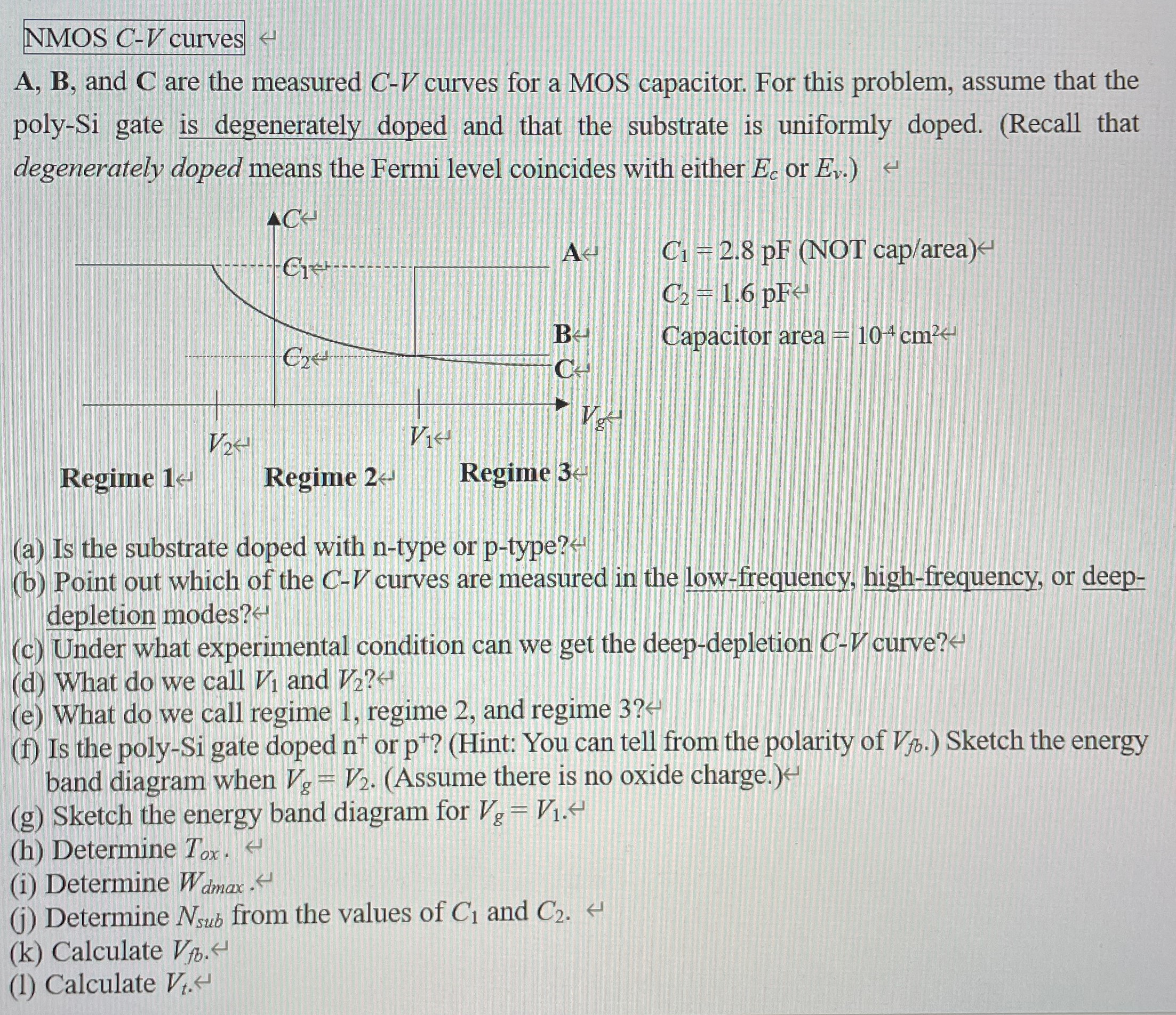

NMOS C-V curves A, B, and C are the measured C−V curves for a MOS capacitor. For this problem, assume that the poly-Si gate is degenerately doped and that the substrate is uniformly doped. (Recall that degenerately doped means the Fermi level coincides with either Ec or Ev. ) (a) Is the substrate doped with n-type or p-type? (b) Point out which of the C−V curves are measured in the low-frequency, high-frequency, or deepdepletion modes? (c) Under what experimental condition can we get the deep-depletion C−V curve? (d) What do we call V1 and V2? (e) What do we call regime 1 , regime 2 , and regime 3? (f) Is the poly-Si gate doped n+or p+? (Hint: You can tell from the polarity of Vfb. ) Sketch the energy band diagram when Vg = V2. (Assume there is no oxide charge.) (g) Sketch the energy band diagram for Vg = V1. (h) Determine Tox. (i) Determine Wdmax . (j) Determine Nsub from the values of C1 and C2. (k) Calculate Vfb. (1) Calculate Vt.
