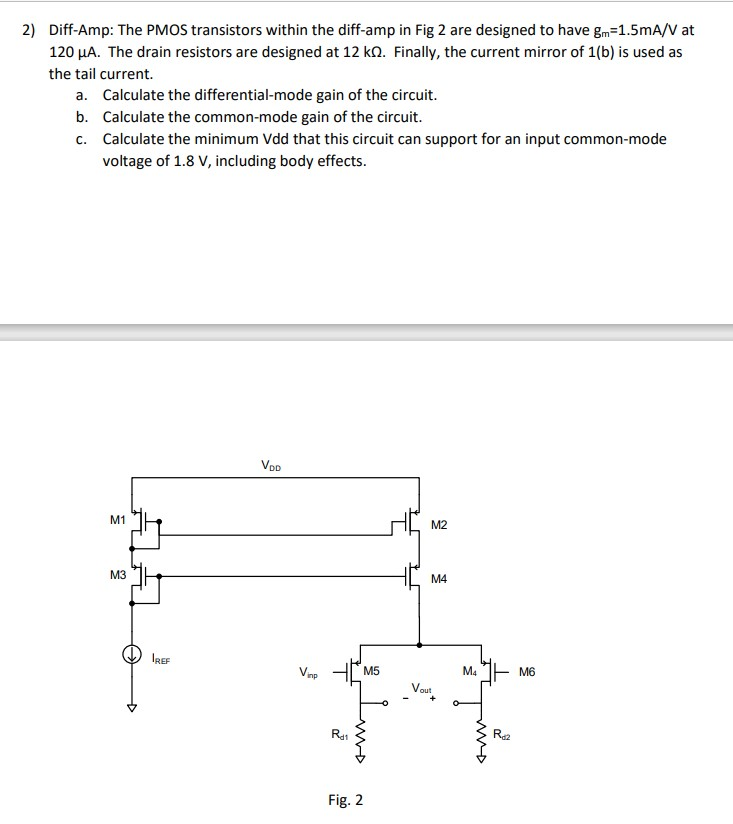

Diff-Amp: The PMOS transistors within the diff-amp in Fig 2 are designed to have gm = 1.5 mA/V at 120 uA. The drain resistors are designed at 12 kohm. Finally, the current mirror of 1( b) is used as the tail current. a. Calculate the differential-mode gain of the circuit. b. Calculate the common-mode gain of the circuit. c. Calculate the minimum Vdd that this circuit can support for an input common-mode voltage of 1.8 V, including body effects. Fig. 2
