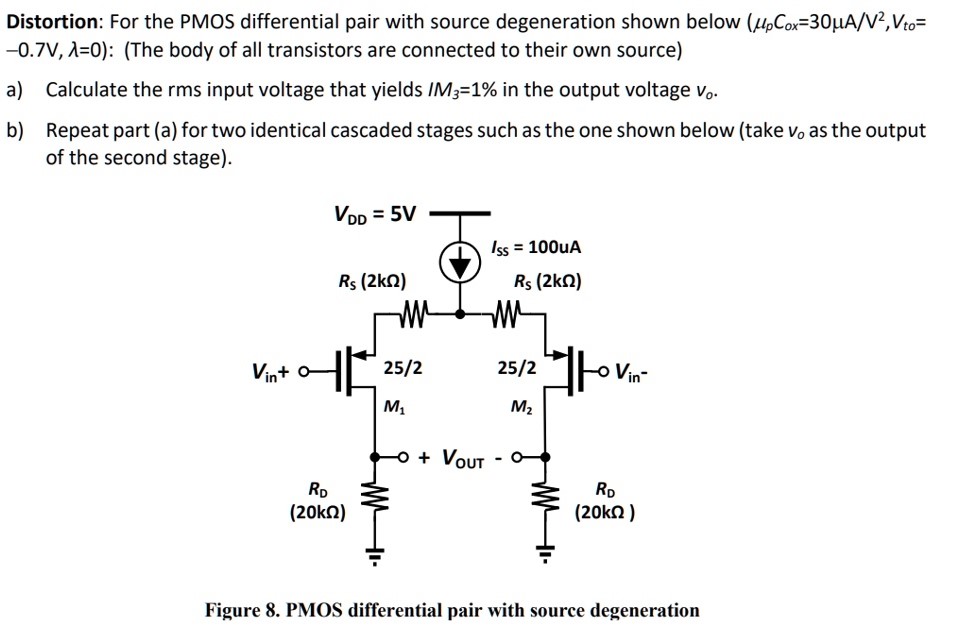

Distortion: For the PMOS differential pair with source degeneration shown below (μpCox = 30 μA/V2, Vto = -0.7 V, λ = 0 ): (The body of all transistors are connected to their own source) a) Calculate the rms input voltage that yields IM3 = 1% in the output voltage vo. b) Repeat part (a) for two identical cascaded stages such as the one shown below (take vo as the output of the second stage). Figure 8. PMOS differential pair with source degeneration
