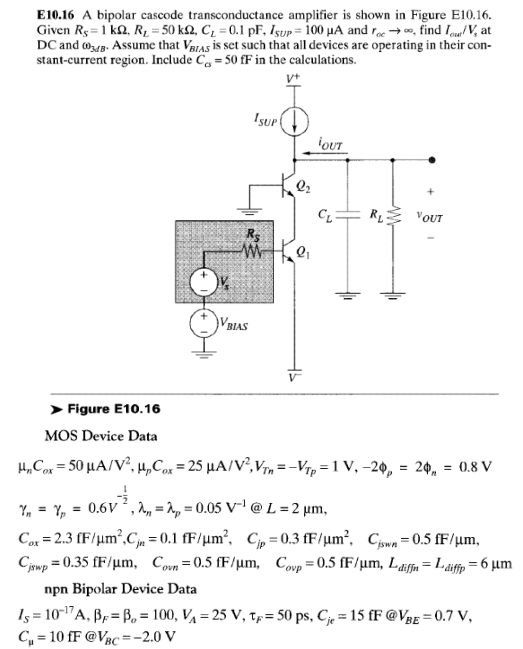

E10.16 A bipolar cascode transconductance amplifier is shown in Figure E10.16. Given RS = 1 kΩ, RL = 50 kΩ, CL = 0.1 pF, ISUP = 100 μA and roc→∞, find Iout/Vs at DC and ωMBB . Assume that VBBAS is set such that all devices are operating in their constant-current region. Include Ccs = 50 fF in the calculations.

E10.16 A bipolar cascode transconductance amplifier is shown in Figure E10.16. Given RS = 1 kΩ, RL = 50 kΩ, CL = 0.1 pF, ISUP = 100 μA and roc→∞, find Iout/Vs at DC and ωMBB . Assume that VBBAS is set such that all devices are operating in their constant-current region. Include Ccs = 50 fF in the calculations.

Image text
E10.16 A bipolar cascode transconductance amplifier is shown in Figure E10.16. Given R S = 1 k Ω , R L = 50 k Ω , C L = 0.1 p F , I S U P = 100 μ A and r o c → ∞ , find I out / V s at D C and ω MBB . Assume that V B B A S is set such that all devices are operating in their constant-current region. Include C ∘ = 50 f F in the calculations. Figure E10.16
MOS Device Data
μ n C o x = 50 μ A / V 2 , μ p C o x = 25 μ A / V 2 , V T n = − V T p = 1 V , − 2 ϕ p = 2 ϕ n = 0.8 V γ n = γ p = 0.6 V − 1 2 , λ n = λ p = 0.05 V − 1 @ L = 2 μ m , C o x = 2.3 f F / μ m 2 , C j n = 0.1 f F / μ m 2 , C j p = 0.3 f F / μ m 2 , C j s w n = 0.5 f F / μ m , C j s w p = 0.35 f F / μ m , C o v n = 0.5 f F / μ m , C o v p = 0.5 f F / μ m , L d i f f n = L diffp = 6 μ m
npn Bipolar Device Data
I S = 10 − 17 A , β F = β o = 100 , V A = 25 V , τ F = 50 p s , C j e = 15 f F @ V B E = 0.7 V , C μ = 10 f F @ V B C = − 2.0 V

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

Current Mirrors (35 points) This problem introduces current mirrors, which will be covered in more details in future lectures. Consider the circuit shown below (Figure 2). (W/L)1 = 1, (W/L)2 = 5, Rref = 50 kΩ, ignore channel length modulation unless otherwise stated. Assume L1 = L2 = 1 μm. Figure 2 a) (5 points) Assume RL = 10 kΩ. Calculate IL, the current flowing through RL. What is the current mirroring ratio ( IL over Iref , where Iref is the current through Rref )? We want the current mirror to provide a load-independent current as much as possible, so check that M2 is in saturation. b) (5 points) Determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio you calculated in part a). Hint: for the current mirror to function as desired, transistor saturation should be maintained. c) (5 points) Channel length modulation introduces load-dependent errors in the mirroring ratio. Using λ = 0.1 V−1 for L = 1 μm, estimate the percentage error in the mirroring ratio. Here, set RL to its maximum value you got in part b ), and assume that we want the same IL as in parts a) and b). Hint: what should be the new VX and Iref ? d) (4 points) Compute the output resistance, Rout, , looking into the drain of M2. Use λ = 0.1 V−1 and assume the same IL as in parts a) through c). e) (5 points) Now consider redesigning the previous current mirror with source-degenerated transistors as shown in Figure 3. Ignore channel length modulation and body effect ( Assume bulk is tied to source). Transistor sizes remain the same, (WL)1 = 1 and (WL)2 = 5. This circuit has been designed to have the same Iref as in part a). What should the value of Rs2 be if we want the same current mirroring ratio as in a)? f) (5 points) Similarly to part b, determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio as in part e). g) (4 points) Now compute the output resistance, Rout , looking into the drain of M2 (using λ = 0.1 V−1 ). Assume IL as used in parts e) and f ). h) (2 points) Comparing the minimum output voltage and the output resistance of these two current mirrors, comment on the advantages and disadvantages of using source degeneration in a current mirror. Figure 3 Current Mirrors (35 points) This problem introduces current mirrors, which will be covered in more details in future lectures. Consider the circuit shown below (Figure 2). (W/L)1 = 1, (W/L)2 = 5, Rref = 50 kΩ, ignore channel length modulation unless otherwise stated. Assume L1 = L2 = 1 μm. Figure 2 a) (5 points) Assume RL = 10 kΩ. Calculate IL, the current flowing through RL. What is the current mirroring ratio ( IL over Iref , where Iref is the current through Rref )? We want the current mirror to provide a load-independent current as much as possible, so check that M2 is in saturation. b) (5 points) Determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio you calculated in part a). Hint: for the current mirror to function as desired, transistor saturation should be maintained. c) (5 points) Channel length modulation introduces load-dependent errors in the mirroring ratio. Using λ = 0.1 V−1 for L = 1 μm, estimate the percentage error in the mirroring ratio. Here, set RL to its maximum value you got in part b ), and assume that we want the same IL as in parts a) and b). Hint: what should be the new VX and Iref ? d) (4 points) Compute the output resistance, Rout, , looking into the drain of M2. Use λ = 0.1 V−1 and assume the same IL as in parts a) through c). e) (5 points) Now consider redesigning the previous current mirror with source-degenerated transistors as shown in Figure 3. Ignore channel length modulation and body effect ( Assume bulk is tied to source). Transistor sizes remain the same, (WL)1 = 1 and (WL)2 = 5. This circuit has been designed to have the same Iref as in part a). What should the value of Rs2 be if we want the same current mirroring ratio as in a)? f) (5 points) Similarly to part b, determine the maximum RL and minimum VOut such that the current mirror still functions with the same current mirroring ratio as in part e). g) (4 points) Now compute the output resistance, Rout , looking into the drain of M2 (using λ = 0.1 V−1 ). Assume IL as used in parts e) and f ). h) (2 points) Comparing the minimum output voltage and the output resistance of these two current mirrors, comment on the advantages and disadvantages of using source degeneration in a current mirror. Figure 3

Solution
0 0

P6. A transconductance amplifier is cascaded with a transresistance amplifier, as shown in the figure. The parameters are RS = 5 kΩ, Ri1 = 50 kΩ, Ro1 = 200 kΩ, Rm = 10 kVA, Ri2 = 1 MΩ, Ro2 = 100 kΩ, RL = 1 kΩ, and Gm = 20 mA/V. a) Calculate (both in ratio and dB) a. the overall open-circuit voltage gain Avo = vo/vi b. the effective voltage gain Gv = vo/vs c. the overall current gain Ai = io/ii d. the power gain Ap = PL/Pi b) Convert the circuit to an equivalent single-stage Voltage amplifier by drawing its model and specifying the equivalent Ri, Ro, and Avo c) Verify your results using Multisim.P6. A transconductance amplifier is cascaded with a transresistance amplifier, as shown in the figure. The parameters are RS = 5 kΩ, Ri1 = 50 kΩ, Ro1 = 200 kΩ, Rm = 10 kVA, Ri2 = 1 MΩ, Ro2 = 100 kΩ, RL = 1 kΩ, and Gm = 20 mA/V. a) Calculate (both in ratio and dB) a. the overall open-circuit voltage gain Avo = vo/vi b. the effective voltage gain Gv = vo/vs c. the overall current gain Ai = io/ii d. the power gain Ap = PL/Pi b) Convert the circuit to an equivalent single-stage Voltage amplifier by drawing its model and specifying the equivalent Ri, Ro, and Avo c) Verify your results using Multisim.
Solution
0 0

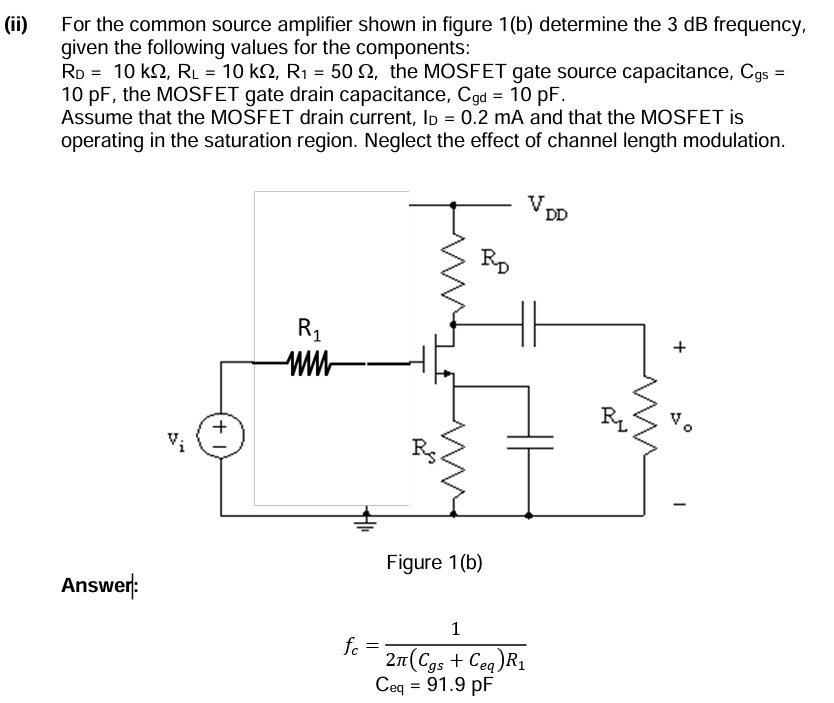

(ii) For the common source amplifier shown in figure 1(b) determine the 3 dB frequency, given the following values for the components: RD = 10 kΩ, RL = 10 kΩ, R1 = 50 Ω, the MOSFET gate source capacitance, Cgs = 10 pF, the MOSFET gate drain capacitance, Cgd = 10 pF. Assume that the MOSFET drain current, ID = 0.2 mA and that the MOSFET is operating in the saturation region. Neglect the effect of channel length modulation. Figure 1(b) Answer: fc = 1 2π(Cgs + Ceq)R1 Ceq = 91.9 pF
