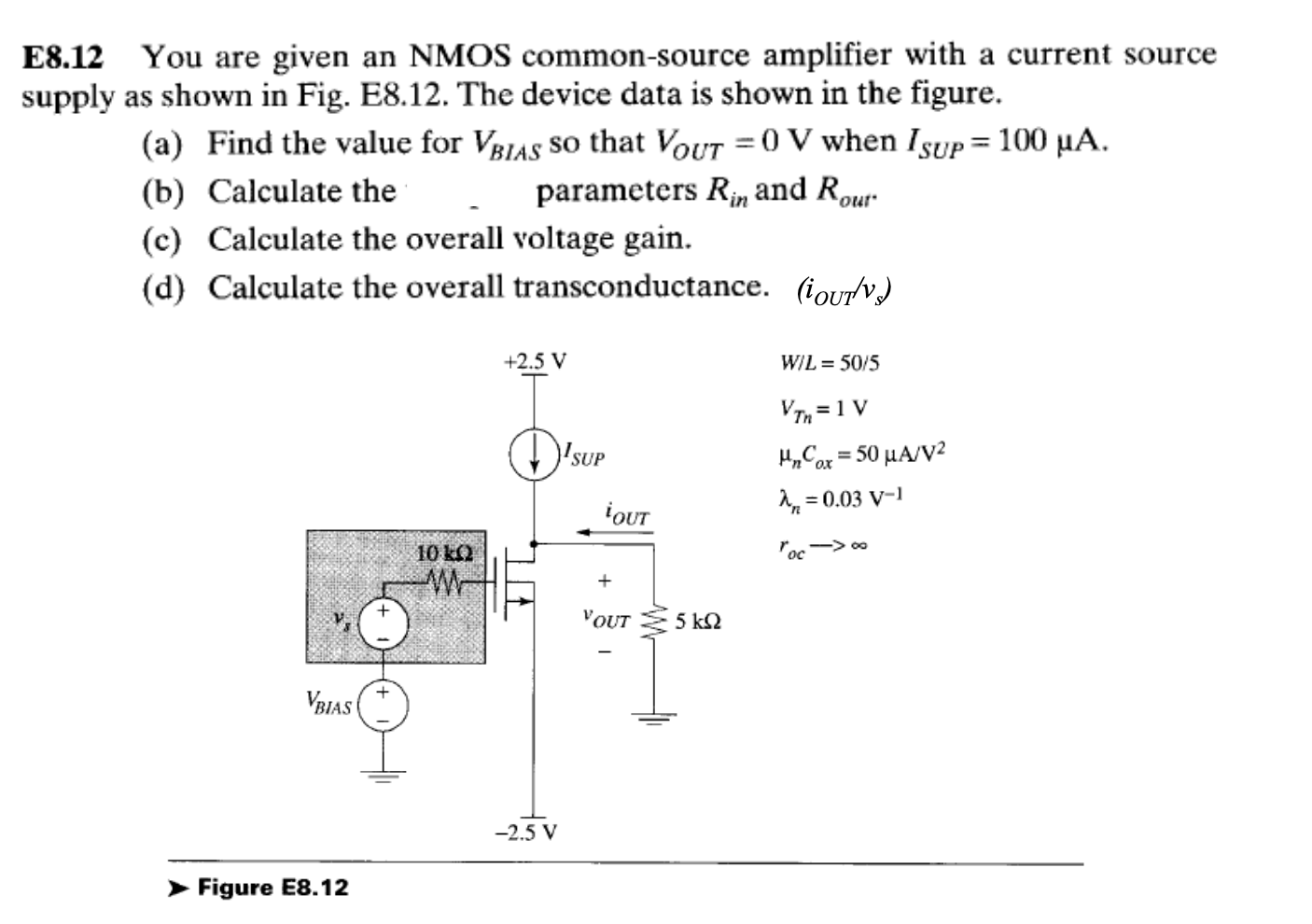

E8.12 You are given an NMOS common-source amplifier with a current source supply as shown in Fig. E8.12. The device data is shown in the figure. (a) Find the value for VBIAS so that VOUT = 0 V when ISUP = 100 uA. (b) Calculate the parameters Rin and Rout (c) Calculate the overall voltage gain. (d) Calculate the overall transconductance. (iOUT/vs)
