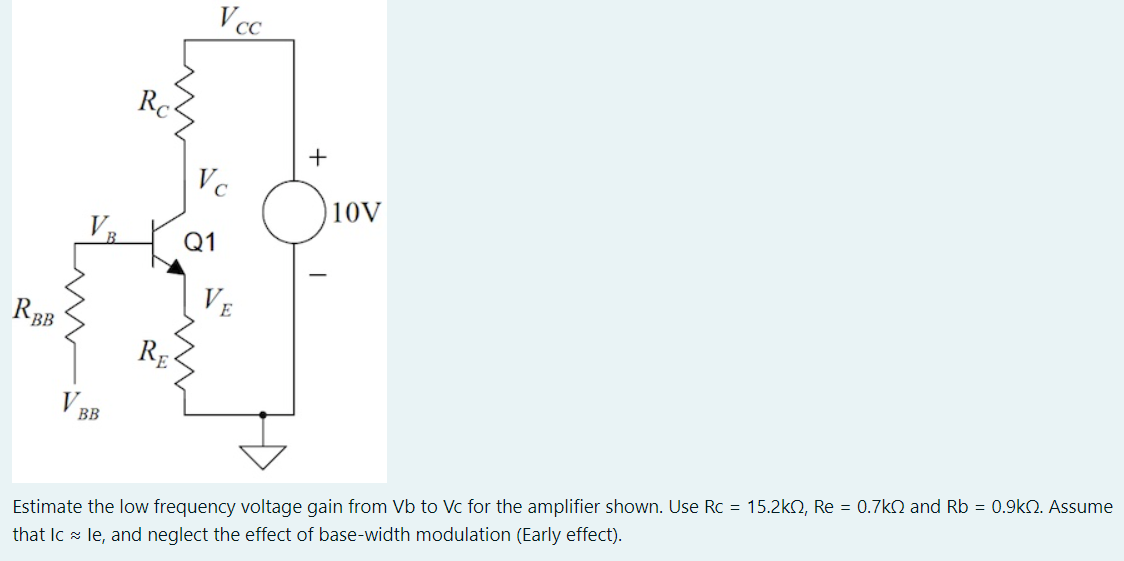

Estimate the low frequency voltage gain from Vb to Vc for the amplifier shown. Use Rc = 15.2 kΩ, Re = 0.7 kΩ and Rb = 0.9 kΩ. Assume that IC ≈ Ie, and neglect the effect of base-width modulation (Early effect).

Estimate the low frequency voltage gain from Vb to Vc for the amplifier shown. Use Rc = 15.2 kΩ, Re = 0.7 kΩ and Rb = 0.9 kΩ. Assume that IC ≈ Ie, and neglect the effect of base-width modulation (Early effect).

Image text
Estimate the low frequency voltage gain from V b to V c for the amplifier shown. Use R c = 15.2 k Ω , R e = 0.7 k Ω and R b = 0.9 k Ω . Assume that IC ≈ Ie, and neglect the effect of base-width modulation (Early effect).

Detailed Answer

0 0

Please enter your email here. You will get email when this question is answered by our tutor.

Doubtrix Logo

Problem is not yet solved!

Click on Notify me to get email when question is answered.

Join Doubtrix with 7-days free trial

  • Icon Correct & Verified Answers
  • Icon No AI-Generated Answers
  • Icon Video Solution for Difficult Questions
  • Icon Work With Experts to Reach at Correct Answers
Notify me Login Sign Up

Similar/Related Questions

For the BJT bias circuit shown, what value of Rc in kilohms is needed to allow the maximum possible peak-to-peak signal swing on the collector without clipping? Use Vcc = 12 V, Rb1 = 22.1 kΩ, Rb2 = 26.6 kΩ, and Re = 2.5 kΩ. Assume that to keep the transistor in the forward-active region, the base-collector junction cannot be forward biased. Use β = 46 and |Vbe(on)| = 0.7 V. Neglect the effects of base-width modulation. Answer:
Solution
0 0

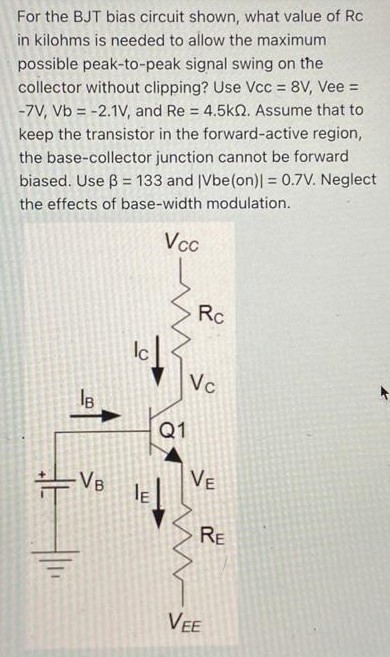

For the BJT bias circuit shown, what value of Rc in kilohms is needed to allow the maximum possible peak-to-peak signal swing on the collector without clipping? Use Vcc = 8 V, Vee = −7 V, Vb = −2.1 V, and Re = 4.5 kΩ. Assume that to keep the transistor in the forward-active region, the base-collector junction cannot be forward biased. Use β = 133 and ∣Vbe(on)∣ = 0.7 V. Neglect the effects of base-width modulation.

Solution
0 0

For the following problem, neglect body effect, Cgd and ro, but consider Cgs and use long-channel equations in transistors. Assume L = 0.7 μm for both transistors. The other circuit component values are the following: Rb = 4 kΩ, Rd = 50 Ω, Lg = 10 nH, Ls = 0.5 nH, RS = 50 Ω. The frequency of operation is 2.4 GHz. Ci may be considered as a short circuit at the frequency of operation. Rb is high enough that can be considered as an open circuit for small signal. (a) Symbolically, calculate the input impedance Zi. (b) Calculate the required overdrive voltage in M2 to make the real part of Zi equal to 50 Ω. (c) Calculate W2 to make Zi = 50 Ω. (d) Calculate ID and W1 to make Iref = ID/10. (e) Calculate the DC component at v0. (f) Numerically calculate the small-signal gain, av = vo/vi. (g) Calculate vo if vs = 1 mV peak. (h) Symbolically, calculate the noise figure of this amplifier. (i) Calculate F in dB. CMOS process data: VDD = 1.8 V. For NMOS, Vthn = 0.4V, μn = 400 cm2/Vs, Cox = 9 fF/μm2 and γn = 1. The parameters for PMOS transistors are k′ = μpCox = 90 μA/V2, Vthp = −0.4V and γp = 0.8.
Solution
