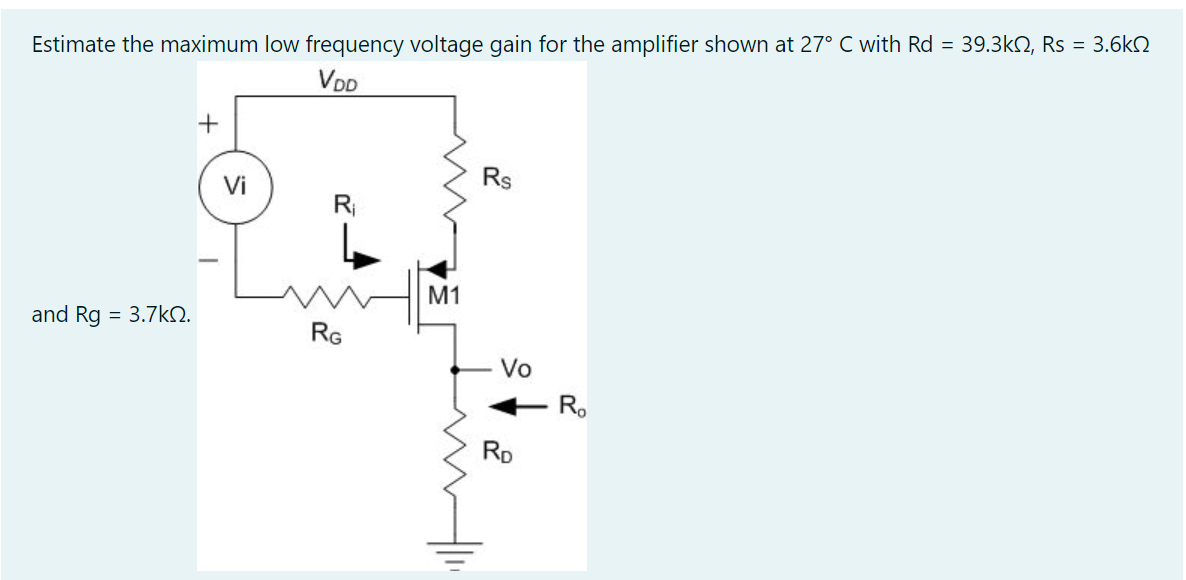

Estimate the maximum low frequency voltage gain for the amplifier shown at 27∘C with Rd = 39.3 kΩ, Rs = 3.6 kΩ.
